X906 Liftgate Jumper to Liftgate Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

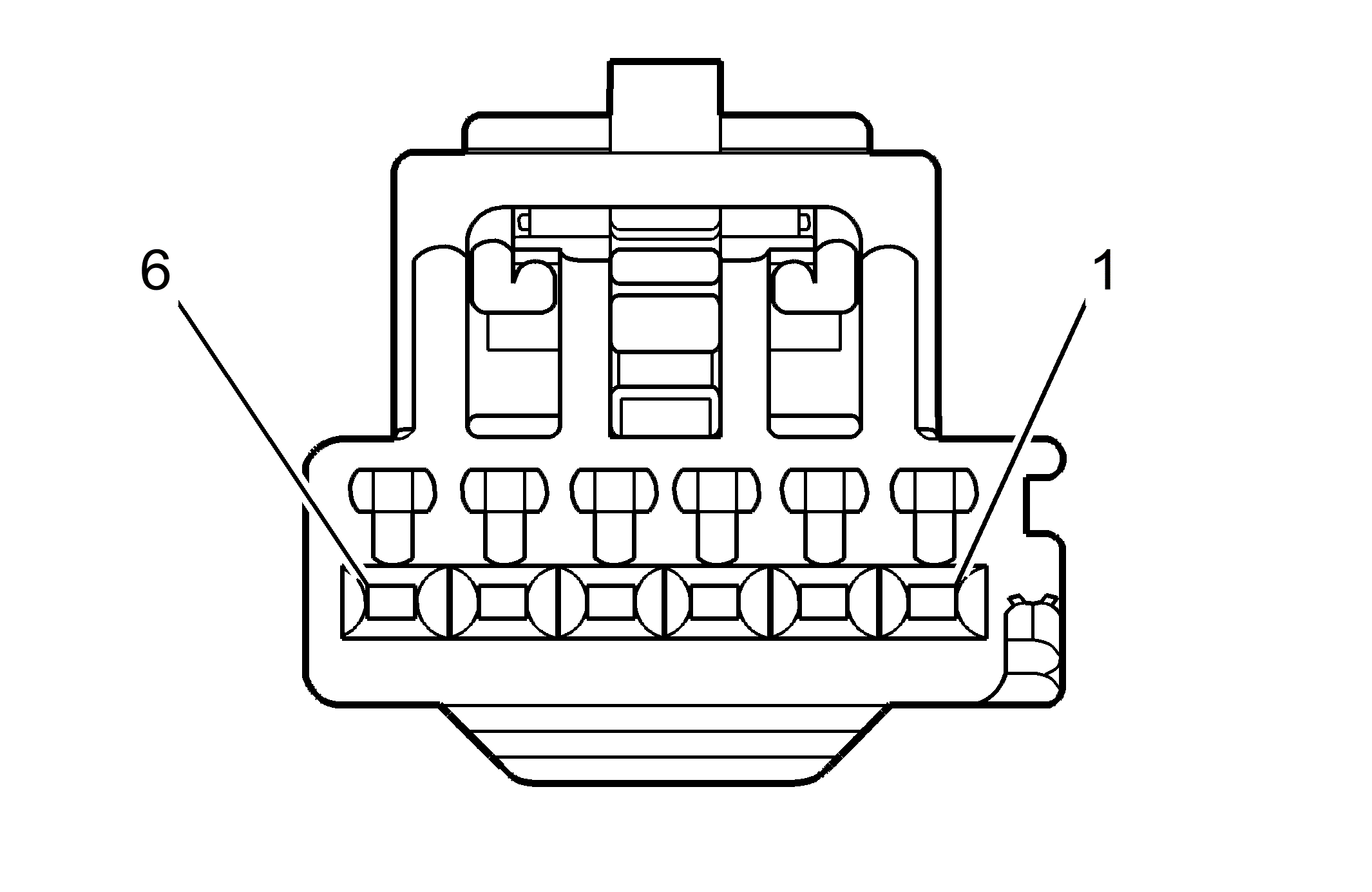

GM1849813Courtesy of GENERAL MOTORS CORP.

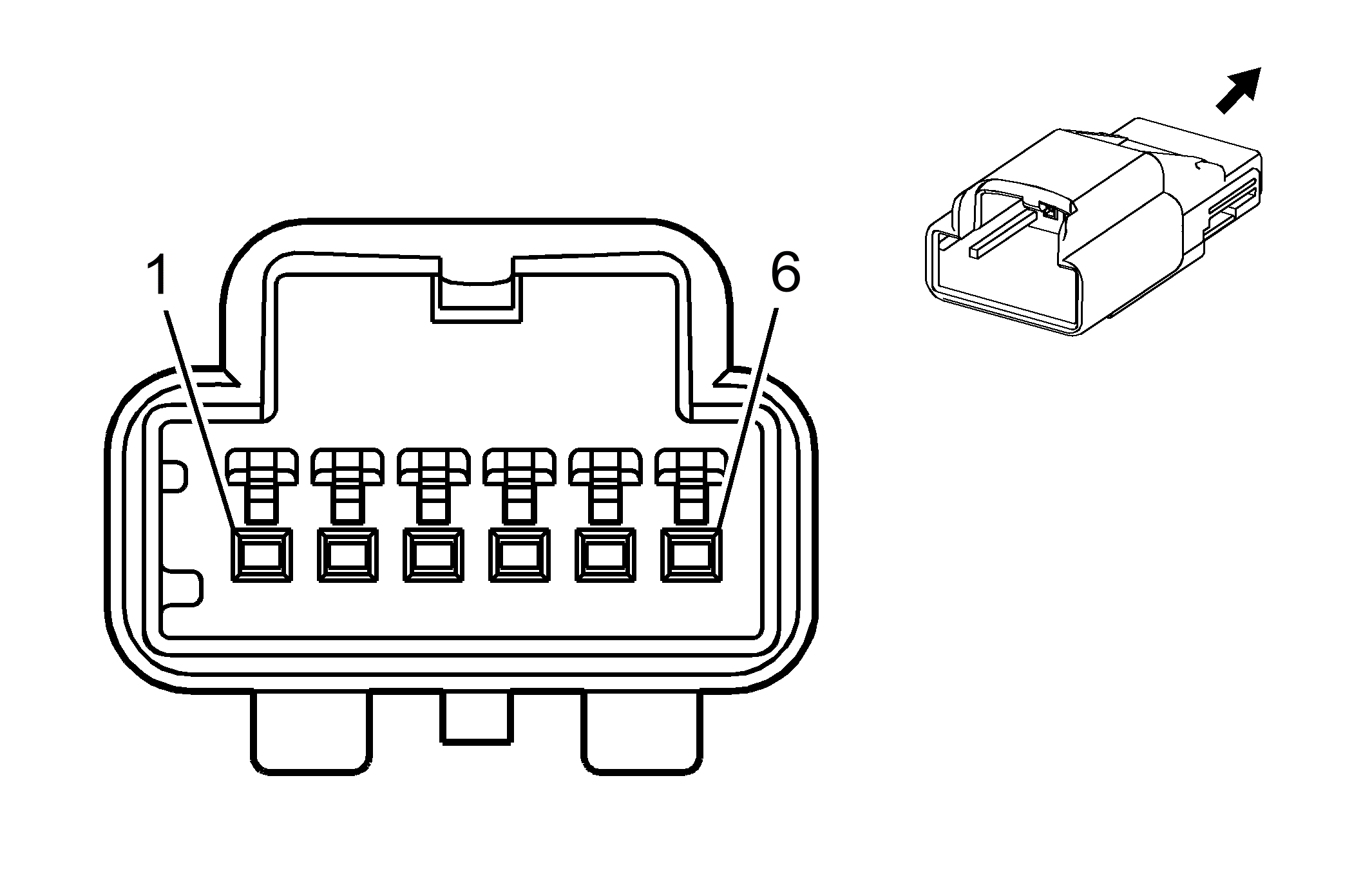

GM1849811Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-6387-30
  • Service: See Catalog
  • Description: 6-Way F 0.64 Series (BK)
 Connector Part Information
  • OEM: 7282-6561-30
  • Service: See Catalog
  • Description: 6-Way M 0.64 Series (BK)
Terminal Part Information
  • Pins: 1-6
  • Terminal/Tray: 7116-4720-02/14
  • Core/Insulation Crimp: Pins: 1, 4 : J/J
  • Core/Insulation Crimp: Pins: 2-3, 5-6 : H/H
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
 Terminal Part Information
  • Pins: 1, 4
  • Terminal/Tray: 7114-4721-02/14
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-65B (L-BU)
  • Pins: 2-3, 5-6
  • Terminal/Tray: 7114-4720-08/14
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 15315247/J-35616-65B (L-BU)
X906 Liftgate Jumper to Liftgate Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.5 PK/BK 1303 Liftgate Ajar Switch Signal 1 0.5 PK/BK 1303 Liftgate Ajar Switch Signal
2 0.35 BN/WH 309 Right Park Lamp Control 2 0.35 BN/WH 309 Right Park Lamp Control
3 0.35 GY 391 Rear Window Wiper Switch Signal 3 0.35 GY 391 Rear Window Wiper Switch Signal
4 0.5 YE 243 Ignition Voltage 4 0.5 YE 243 Ignition Voltage
5 0.35 L-GN 2270 Rear Window Washer Relay Control 5 0.35 L-GN 2270 Rear Window Washer Relay Control
6 0.35 GY 5797 Rear Closure Handle Switch Open Signal 6 0.35 GY 5797 Rear Closure Handle Switch Open Signal
