X700 Body Harness to the Left Rear Door Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

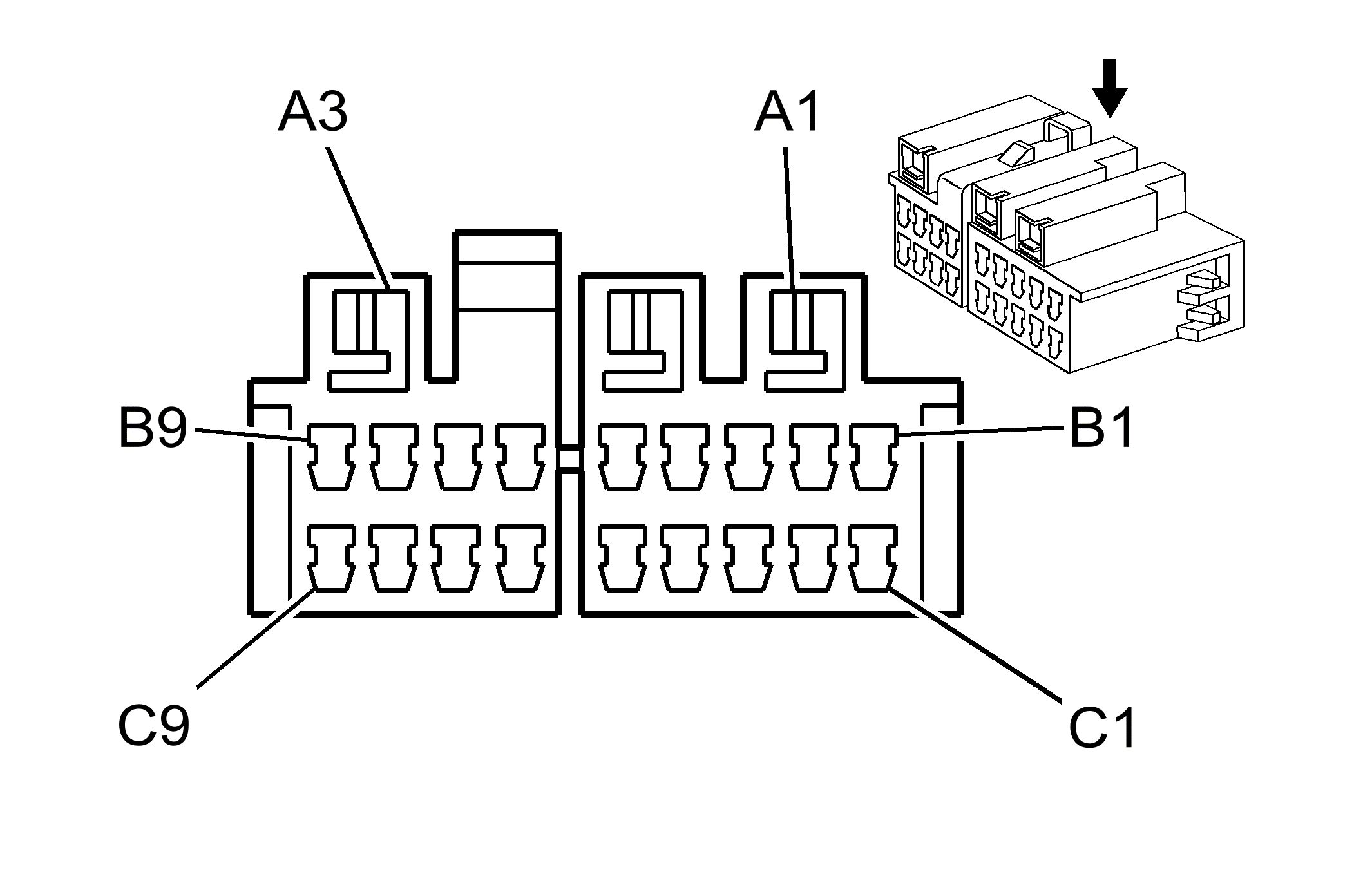

GM1413062Courtesy of GENERAL MOTORS CORP.

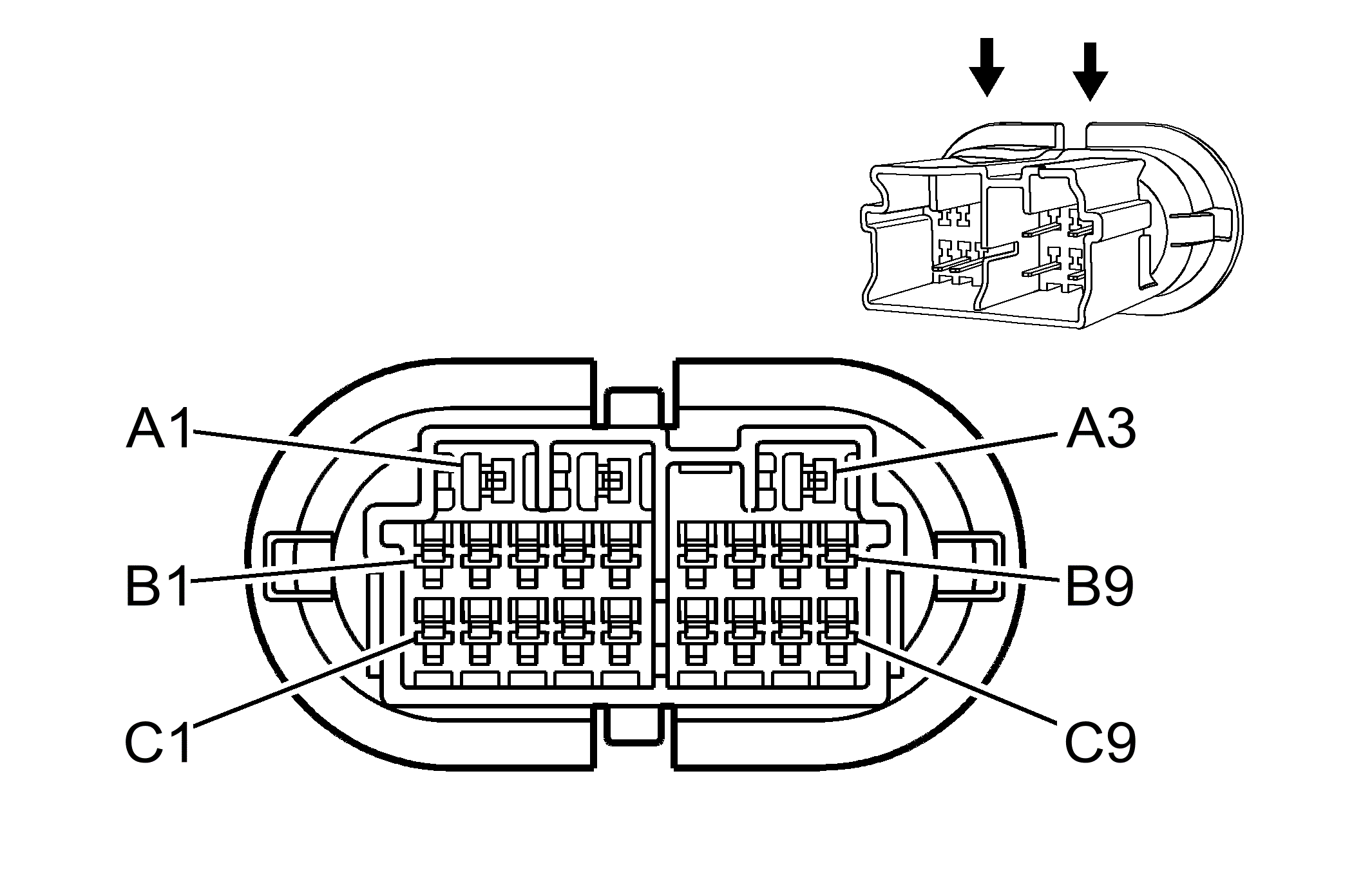

GM1415172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7123-1413
  • Service: 88988485
  • Description: 21-Way F (WH)
 Connector Part Information
  • OEM: 7122-1413
  • Service: See Catalog
  • Description: 21-Way M 0.070 Series (WH)
Terminal Part Information
  • Pins: A1-A3
  • Terminal/Tray: 7116-1050/27
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: B5, B8, C2-C3, C6, C8
  • Terminal/Tray: 173630-7/7
  • Core/Insulation Crimp: Pins: B8, C2-C3, C8 : E/A
  • Core/Insulation Crimp: Pins: B5, C6 : E/4
  • Release Tool/Test Probe: 15315247/J-35616-33 (YE)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X700 Body Harness to the Left Rear Door Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A1 2.0 D-GN 168 Power Window Master Switch Left Rear Up Signal A1 2.0 D-GN 168 Power Window Master Switch Left Rear Up Signal
A2 2.0 PU 169 Power Window Master Switch Left Rear Down Signal A2 2.0 PU 169 Power Window Master Switch Left Rear Down Signal
A3 2.0 D-BU 1307 Power Window Master Switch Lockout Signal A3 2.0 D-BU 1307 Power Window Master Switch Lockout Signal
B1-B4 - - Not Used B1-B4 - - Not Used
B5 0.35 TN/WH 746 Door Ajar Switch Signal B5 0.35 RD/BK 746 Door Ajar Switch Signal
B6 - - Not Used B6 0.35 BK 295 Door Lock Actuator Lock Control
B7 - - Not Used B7 - - Not Used
B8 1.0 GY 295 Door Lock Actuator Lock Control B8 0.5 GY 295 Door Lock Actuator Lock Control
B9 - - Not Used B9 - - Not Used
C1 - - Not Used C1 - - Not Used
C2 0.8 YE 116 Left Rear Speaker Output (-) C2 0.8 BN 116 Left Rear Speaker Output (-)
C3 0.8 BN 199 Left Rear Speaker Output (+) C3 0.8 YE 199 Left Rear Speaker Output (+)
C4 - - Not Used C4 - - Not Used
C5 - - Not Used C5 0.5 PU 294 Door Lock Actuator Unlock Control
C6 0.5 BK/WH 651 Ground C6 0.5 BK 651 Ground
C7 - - Not Used C7 - - Not Used
C8 1.0 TN 294 Door Lock Actuator Unlock Control C8 0.5 TN 294 Door Lock Actuator Unlock Control
C9 - - Not Used C9 - - Not Used
