X500 Body Harness to the Left Front Door Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

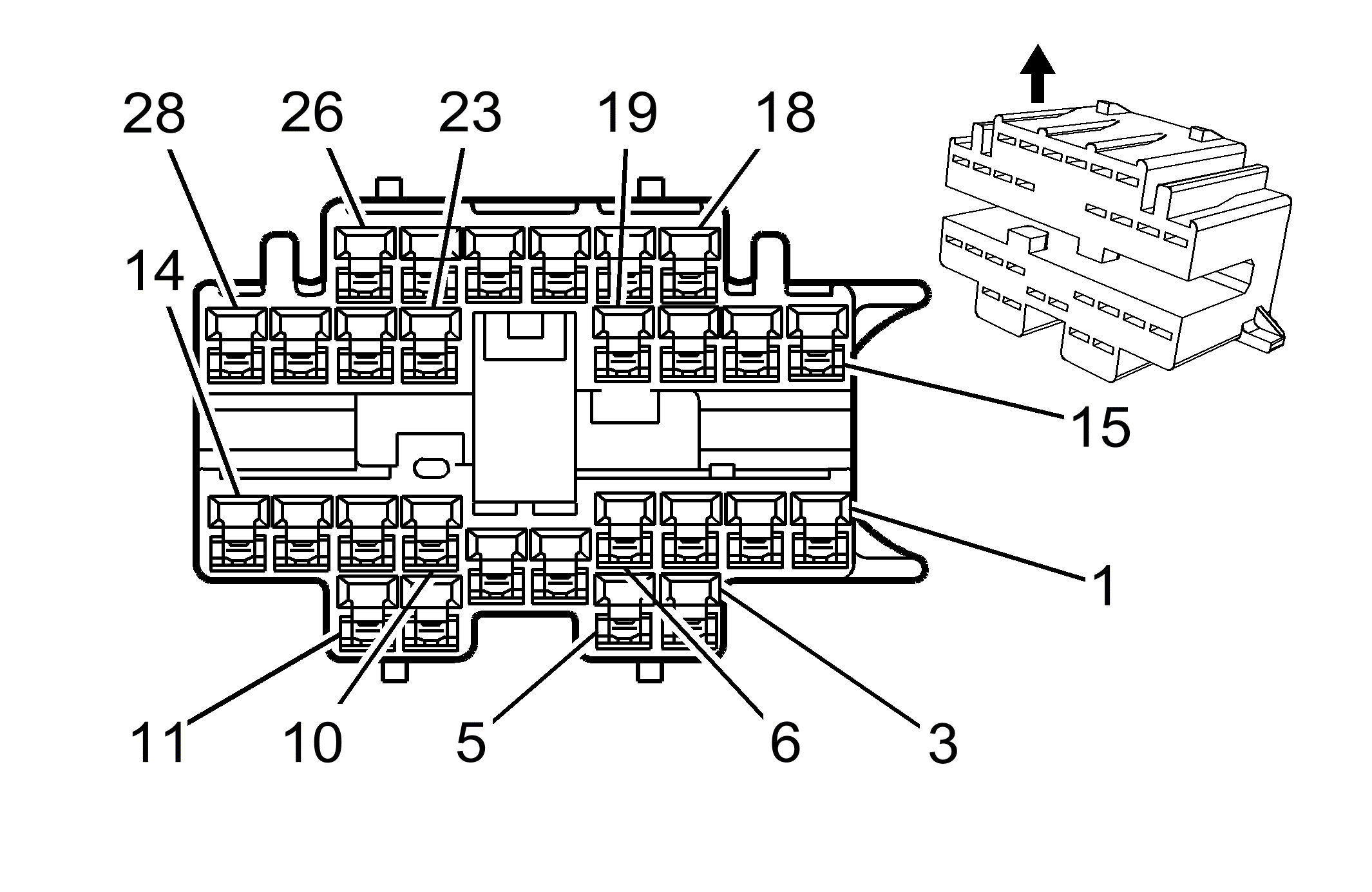

GM1413044Courtesy of GENERAL MOTORS CORP.

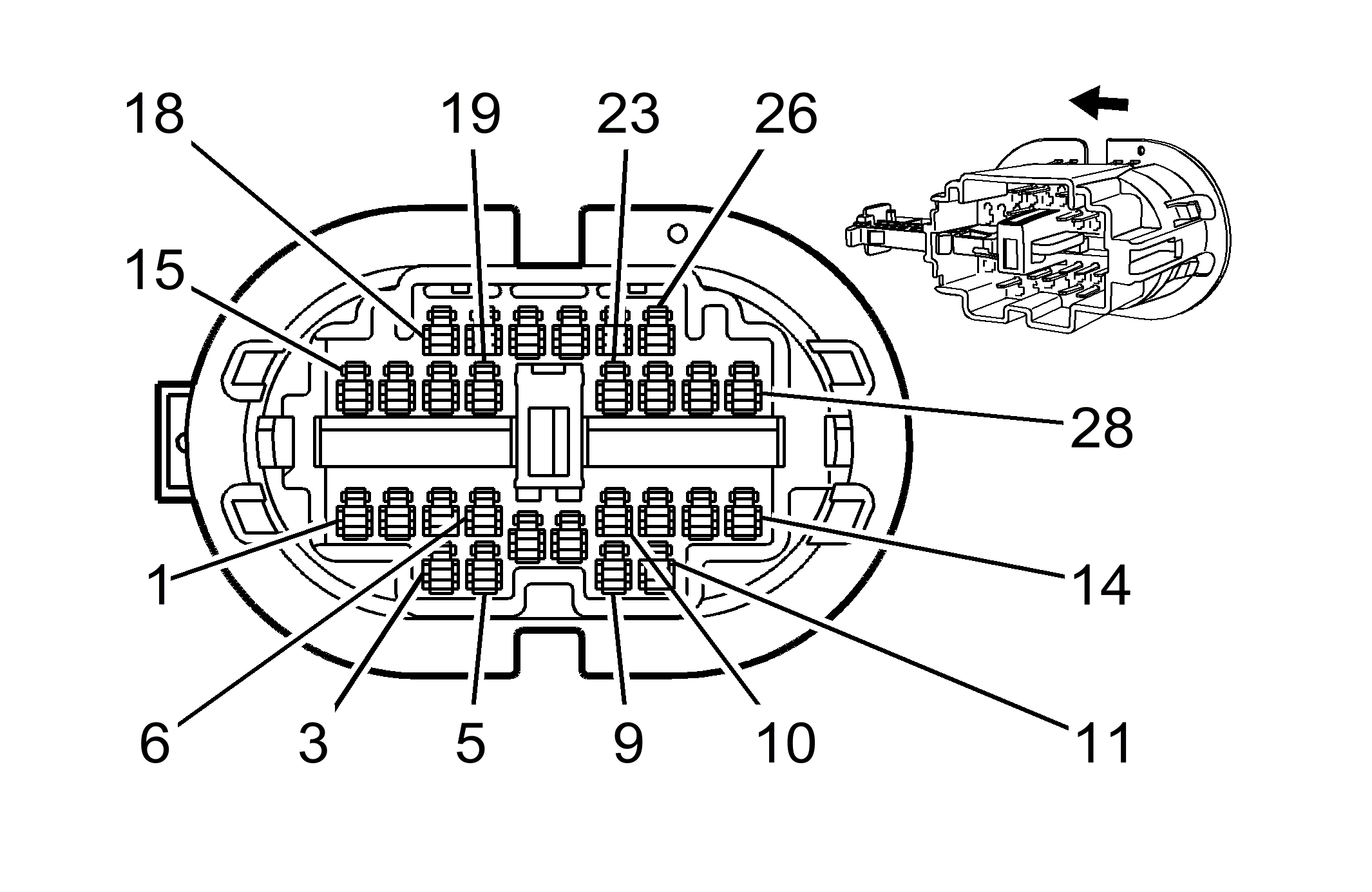

GM1460798Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7183-1584
  • Service: See Catalog
  • Description: 28-Way F 090 Class II Series Sealed (WH)
 Connector Part Information
  • OEM: 7182-1581
  • Service: See Catalog
  • Description: 28-Way M 090 Class II Series Sealed (WH)
Terminal Part Information
  • Pins: 7-12, 19, 21
  • Terminal/Tray: 7116-4020/11
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
  • Pins: 3-4, 23-24
  • Terminal/Tray: 7116-4021/11
  • Core/Insulation Crimp: Pins: 23-24 : 2/A
  • Core/Insulation Crimp: Pins: 3-4 : E/A
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
  • Pins: 25-26
  • Terminal/Tray: 7116-4022/11
  • Core/Insulation Crimp: 4/A
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X500 Body Harness to the Left Front Door Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1-2 - - Not Used 1-2 - - Not Used
3 0.8 GY 118 Left Front Speaker Output (-) 3 0.8 TN 118 Left Front Speaker Output (-)
4 0.8 TN 201 Left Front Speaker Output (+) 4 0.8 GY 201 Left Front Speaker Output (+)
5-6 - - Not Used 5-6 - - Not Used
7 0.35 OG/BK 781 Driver Door Lock Switch Unlock Signal 7 0.35 OG/BK 781 Driver Door Lock Switch Unlock Signal
8 0.35 PK/BK 780 Driver Door Lock Switch Lock Signal 8 0.35 RD/BK 780 Driver Door Lock Switch Lock Signal
9 0.35 L-GN 1499 Driver Mirror Motor Left/Down Control 9 0.35 YE 1499 Driver Mirror Motor Left/Down Control
10 0.35 BK/WH 651 Ground 10 0.5 BK 651 Ground
11 0.35 YE 88 Driver Mirror Motor Up Control 11 0.35 L-GN 88 Driver Mirror Motor Up Control
12 0.35 WH 81 Driver Mirror Motor Right Control 12 0.35 WH 81 Driver Mirror Motor Right Control
13 - - Not Used 13 0.35 BK 746 Door Ajar Switch Signal
14-18 - - Not Used 14-18 - - Not Used
19 0.35 GY/BK 745 Left Front Door Ajar Switch Signal 19 0.35 RD/BK 745 Left Front Door Ajar Switch Signal
20 - - Not Used 20 0.5 PU 294 Door Lock Actuator Unlock Control
21 0.35 BK/WH 651 Ground 21 0.35 OG 651 Ground
22 - - Not Used 22 - - Not Used
23 1.0 GY 295 Door Lock Actuator Lock Control 23 0.5 GY 295 Door Lock Actuator Lock Control
24 1.0 TN 694 Driver Door Lock Actuator Unlock Control 24 0.5 TN 694 Driver Door Lock Actuator Unlock Control
25 2.0 D-BU 164 Power Window Motor Left Front Up Control 25 2.0 D-BU 164 Power Window Motor Left Front Up Control
26 2.0 BN 165 Power Window Motor Left Front Down Control 26 2.0 BN 165 Power Window Motor Left Front Down Control
27 0.5 OG 2267 Mirror Heating Element Control (DK2) 27 0.5 OG 2267 Mirror Heating Element Control (DK2)
28 0.5 BK 650 Ground (DK2) 28 0.5 BK 650 Ground (DK2)
