X414 Body to the CHMSL Jumper Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
GM1413061Courtesy of GENERAL MOTORS CORP.

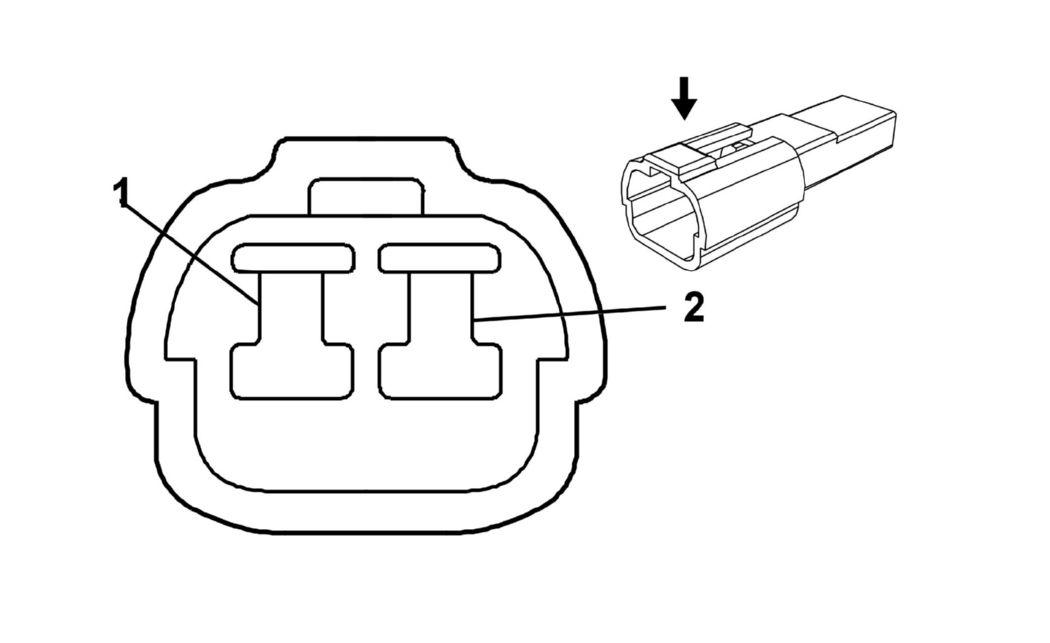

GM1413066Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7123-1520
  • Service: 88988450
  • Description: 2-Way F 090 Series (NA)
 Connector Part Information
  • OEM: 7122-1520
  • Service: 88988464
  • Description: 2-Way M 090 Series (NA)
Terminal Part Information
  • Terminal/Tray: 7116-4100-08/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
 Terminal Part Information
  • Terminal/Tray: 7114-4100-08/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
X414 Body to the CHMSL Jumper Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.5 L-BU 1320 Center High Mounted Stop Lamp (CHMSL) Control 1 0.5 L-BU 1320 Center High Mounted Stop Lamp (CHMSL) Control
2 0.5 BK 850 Ground 2 0.5 BK 850 Ground
