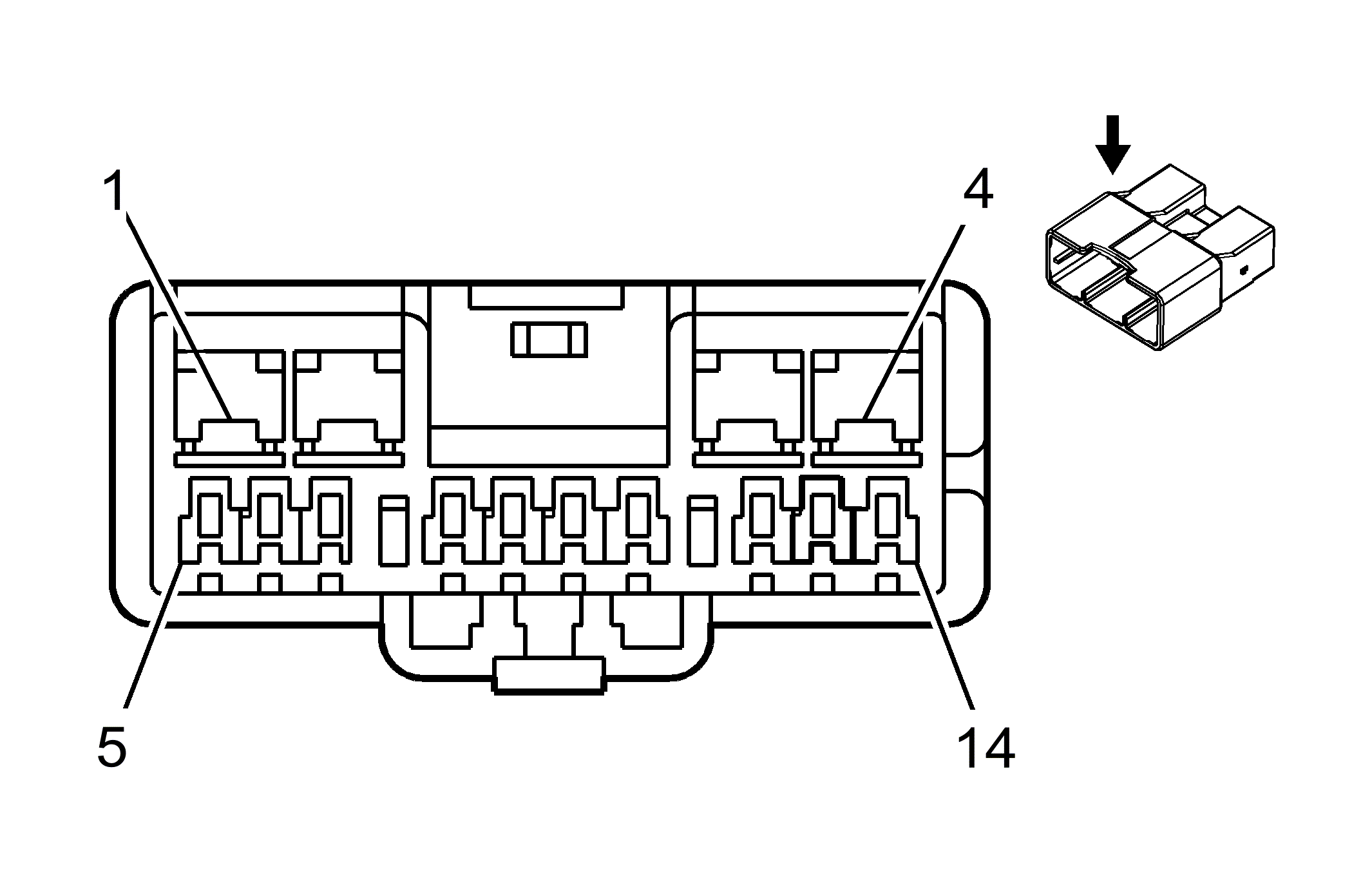

X407 Headliner Harness to the Sunroof Harness (CF5)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

Connector Part Information OEM: 7283-8398-40 Service: See Catalog Description: 14-Way F 64 2.8 YESC Series (L-GY)	Connector Part Information OEM: 7282-8395-40 Service: See Catalog Description: 14-Way M Series (L-GY)
Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit	Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

X407 Headliner Harness to the Sunroof Harness (CF5)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	3.0 RD/WH	4440	Battery Positive Voltage	1	3.0 RD/WH	4440	Battery Positive Voltage
2	-	-	Not Used	2	-	-	Not Used
3	0.35 YE	643	Ignition Voltage	3	0.35 YE	643	Ignition Voltage
4	3.0 BK	850	Ground	4	3.0 BK	1050	850
5	0.35 OG/BK	144	Sunroof Switch Open Vent Signal	5	0.35 OG/BK	144	Sunroof Switch Open Vent Signal
6	0.35 BN	100	Sunroof Switch Close Signal	6	0.35 BN	100	Sunroof Switch Close Signal
7	0.35 D-GN	2074	Sunroof Switch Express Signal	7	0.35 D-GN	2074	Sunroof Switch Express Signal
8-10	-	-	Not Used	8-10	-	-	Not Used
11	0.35 D-BU	128	Low Reference	11	0.35 D-BU	128	Low Reference
12	-	-	Not Used	12	0.35 BN/WH	9061
13	-	-	Not Used	13	0.35 BN/WH	9062
14	-	-	Not Used	14	0.35 WH	9063
