X406 Body Harness to the Fuel Sender Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

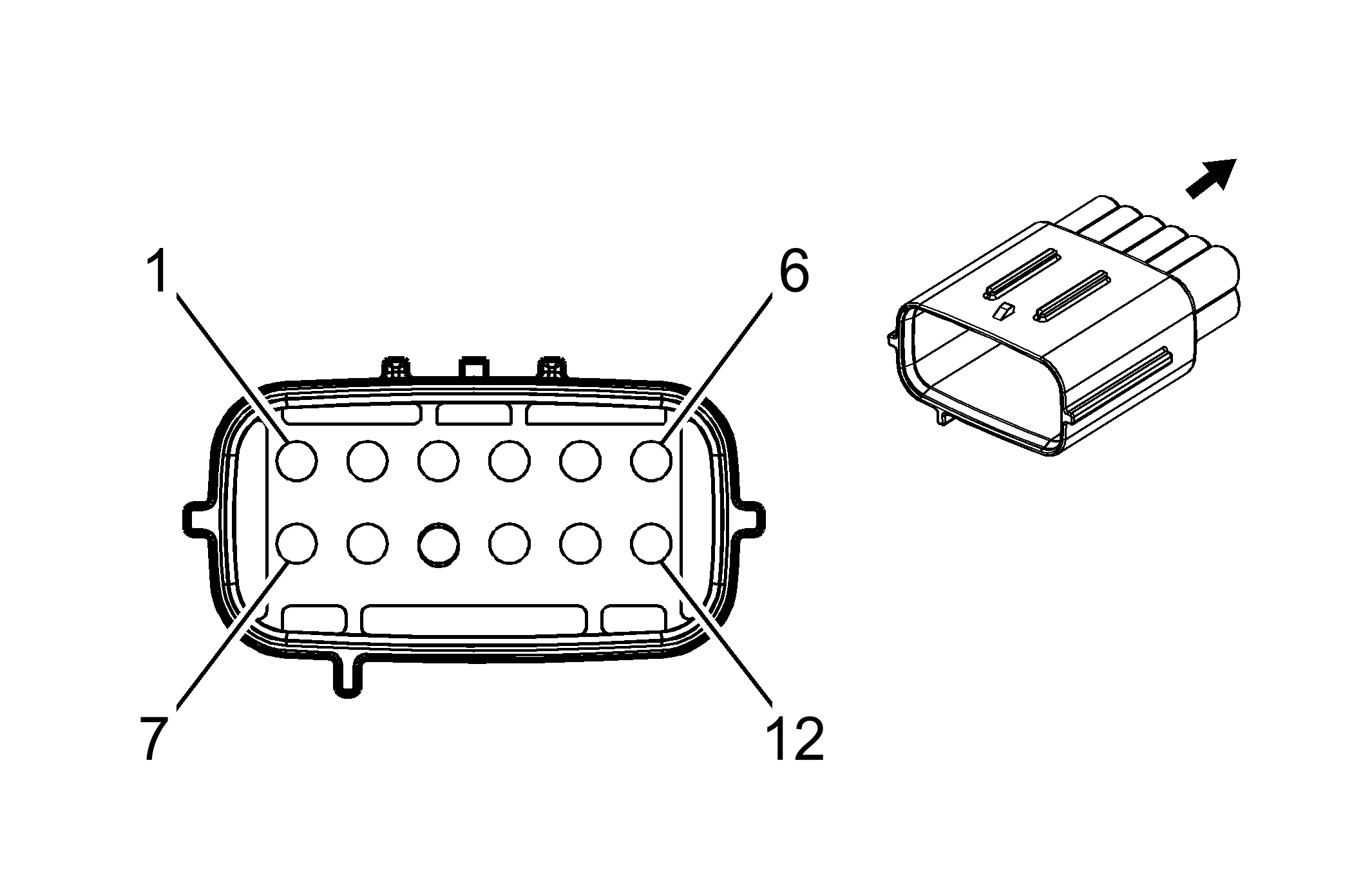

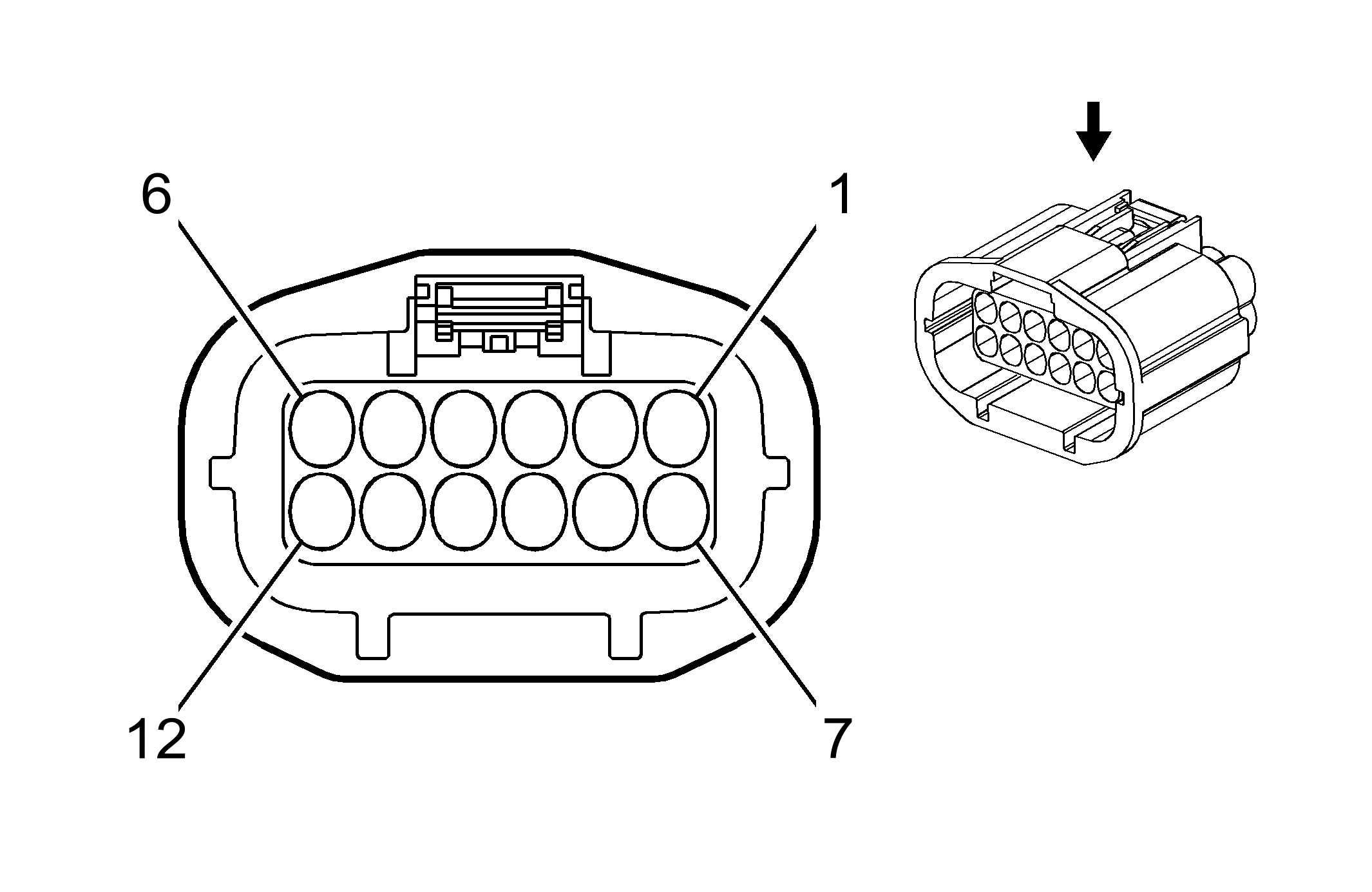

Connector Part Information OEM: 7283-2433-30 Service: 19180608 Description: 12-Way F 1.5 YESC Series Sealed (BK)	Connector Part Information OEM: 7282-2432-30 Service: 19179142 Description: 12-Way M 1.5 YESC Series Series Sealed (BK)
Terminal Part Information Pins 1-5, 6, 9, 11 Terminal/Tray: 7116-4102-08/9 Pins 7, 8 Terminal/Tray: 7116-4103-08/9 Core/Insulation Crimp: E/1 Release Tool/Test Probe: 12094430/J-35616-2A (GY)	Terminal Part Information Pins 1-5, 9-11 Terminal/Tray: 7114-4102-08/9 Pins 7, 8 Terminal/Tray: 7114-4103-08/9 Core/Insulation Crimp: E/1 Release Tool/Test Probe: 12094430/J-35616-3 (GY)

X406 Body Harness to the Fuel Sender Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 WH	1310	EVAP Canister Vent Solenoid Control	1	0.35 WH	1310	EVAP Canister Vent Solenoid Control
2	0.5 RD/WH	2840	Battery Positive Voltage	2	0.35 PK	2840	Battery Positive Voltage
3	0.35 TN	2759	Low Reference	3	0.35 BK/WH	2759	Low Reference
4	0.5 TN	2759	Low Reference	4	0.35 BK	2759	Low Reference
5	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal	5	0.35 D-GN	890	Fuel Tank Pressure Sensor Signal
6	-	-	Not Used	6	-	-	Not Used
7	1.0 GY	120	Fuel Pump Control	7	1.0 GY	120	Fuel Pump Control
8	1.0 BK	850	Ground	8	1.0 BK	850	Ground
9	0.35 PU	1589	Fuel Level Sensor Signal	9	0.35 PU	1589	Fuel Level Sensor Signal
10	-	-	Not Used	10	0.35 D-BU	30	Fuel Level Sensor Signal
11	0.5 GY	2709	5-Volt Reference	11	0.35 GY	2709	5-Volt Reference
12	-	-	Not Used	12	-	-	Not Used
