X405 Liftgate Jumper to the Body Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

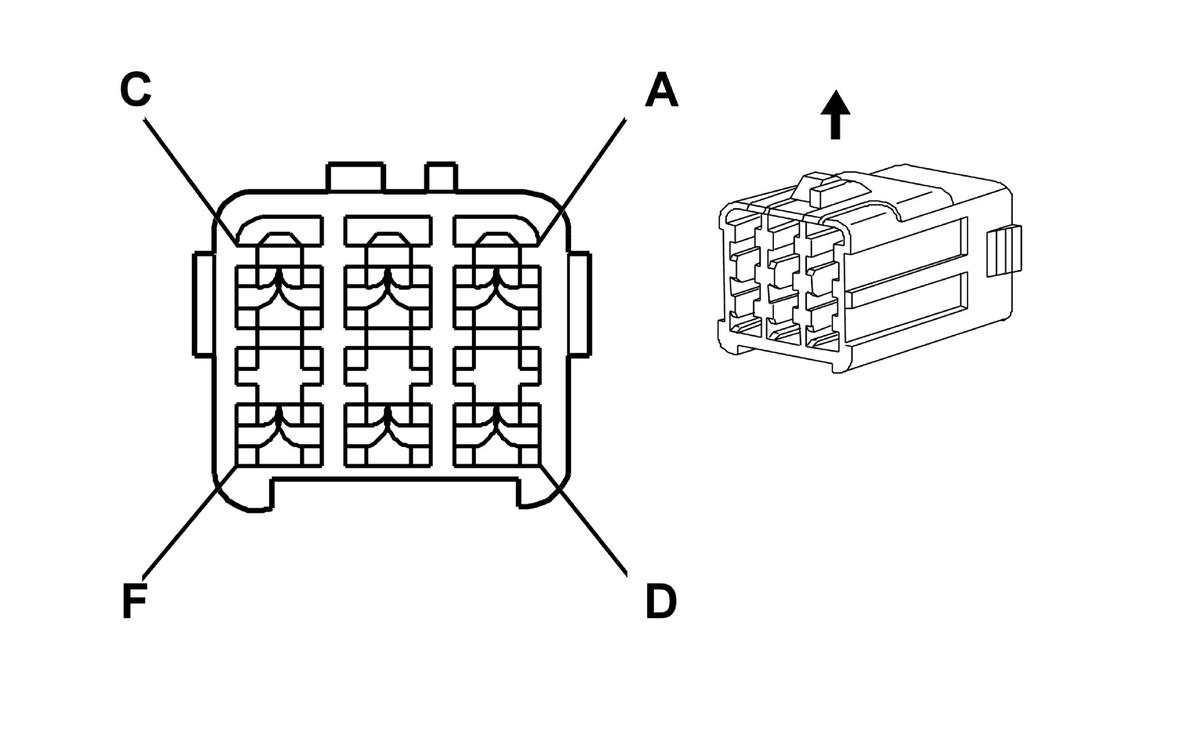

GM1412983Courtesy of GENERAL MOTORS CORP.

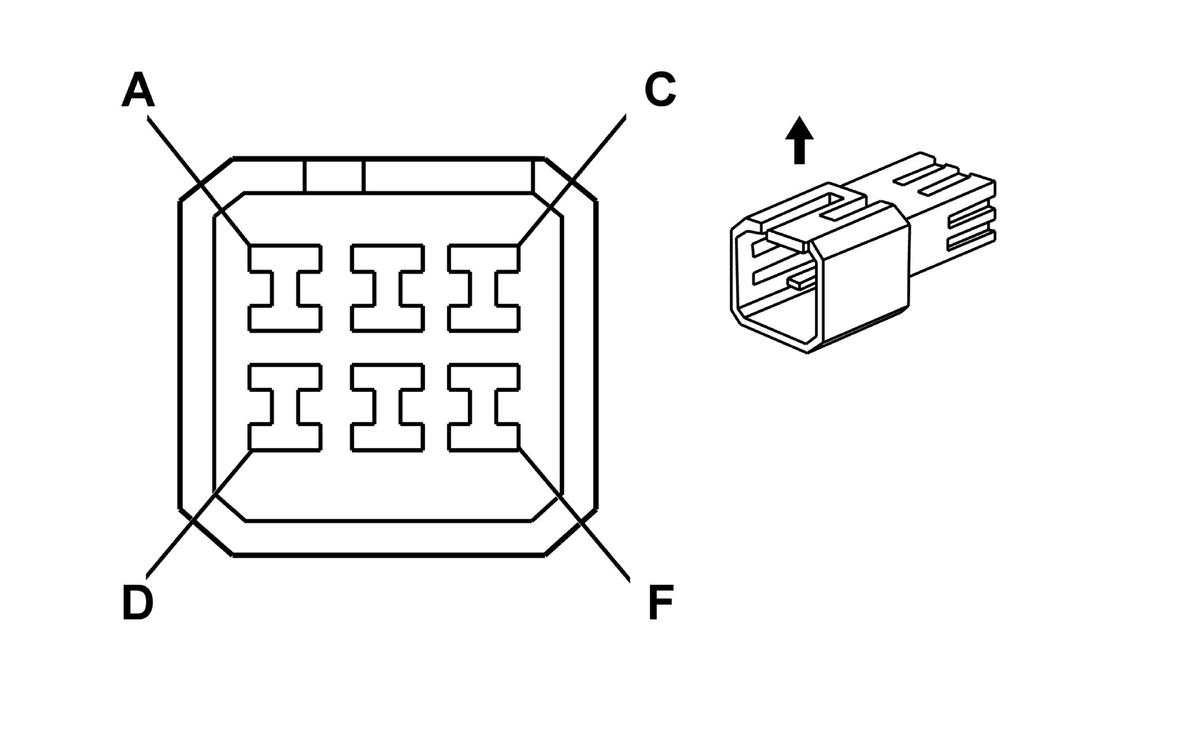

GM1413088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7123-1460-30
  • Service: 88988466
  • Description: 6-Way F (BK)
 Connector Part Information
  • OEM: 7122-1163-30
  • Service: See Catalog
  • Description: 6-Way M (NA)
Terminal Part Information
  • Terminal/Tray: 7116-1180/11
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
 Terminal Part Information
  • Pins: A-F
  • Terminal/Tray: 7114-1170/11
  • Core/Insulation Crimp: Pins: A-C, E-F: E/C
  • Core/Insulation Crimp: Pins: D: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-19 (BK)
X405 Liftgate Jumper to the Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.5 PK/BK 1303 Liftgate Ajar Switch Signal A 0.35 PK/BK 1303 Liftgate Ajar Switch Signal
B 0.35 BN/WH 309 Right Park Lamp Control B 0.35 BN/WH 309 Right Park Lamp Control
C 0.35 GY 391 Rear Window Wiper Switch Signal C 0.35 GY 391 Rear Window Wiper Switch Signal
D 0.5 YE 243 Ignition Voltage D 0.5 YE 243 Ignition Voltage
E 0.35 L-GN 2270 Rear Window Washer Relay Control E 0.35 L-GN 2270 Rear Window Washer Relay Control
F 0.35 GY 5797 Rear Closure Handle Switch Open Signal F 0.35 GY 5797 Rear Closure Handle Switch Open Signal
