X400 Body Harness to the Chassis Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

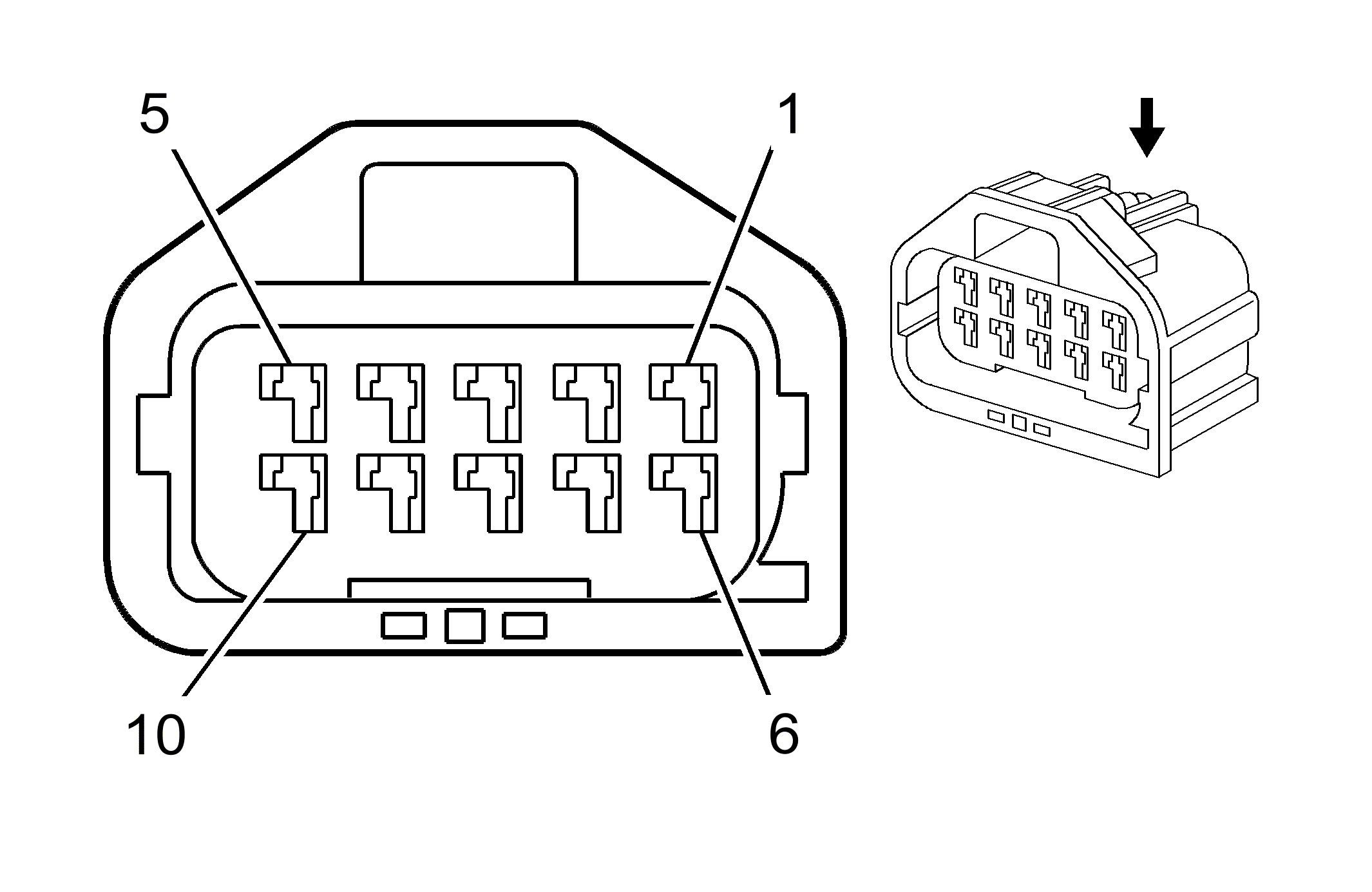

GM888606Courtesy of GENERAL MOTORS CORP.
GM823302Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5946-30
  • Service: 88988239
  • Description: 10-Way F YESC/USCAR Class III Series Sealed (BK)
 Connector Part Information
  • OEM: 7282-5946-30
  • Service: See Catalog
  • Description: 10-Way M YESC/USCAR Class III Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
 Terminal Part Information
  • Pins: 2-4, 6-9
  • Terminal/Tray: 7114-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-3 (GY)
  • Pins: 1, 10
  • Terminal/Tray: 7114-4103-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-3 (GY)
X400 Body Harness to the Chassis Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.5 BK 850 Ground (M45/MH4) 1 0.8 BK 850 Ground (M45/MH4)
2 0.5 L-BU 5986 Serial Data Communication Enable (M45/MH4) 2 0.35 L-BU 5986 Serial Data Communication Enable (M45/MH4)
3 0.5 TN 884 Left Rear Wheel Speed Sensor Signal 3 0.5 TN 884 Left Rear Wheel Speed Sensor Signal
4 0.5 OG 885 Low Reference 4 0.5 OG 885 Low Reference
5 - - Not Used 5 - - Not Used
6 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+ 6 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
7 0.5 TN 2501 High Speed GMLAN Serial Data Bus- 7 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
8 0.5 BN 882 Right Rear Wheel Speed Sensor Signal 8 0.5 BN 882 Right Rear Wheel Speed Sensor Signal
9 0.5 WH 883 Low Reference 9 0.5 WH 883 Low Reference
10 0.5 RD/WH 1740 Battery Positive Voltage (M45/MH4) 10 0.8 RD/WH 1740 Battery Positive Voltage (M45/MH4)
