X309 Body Harness to the Passenger Seat Harness (without KA1)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
GM1849816Courtesy of GENERAL MOTORS CORP.

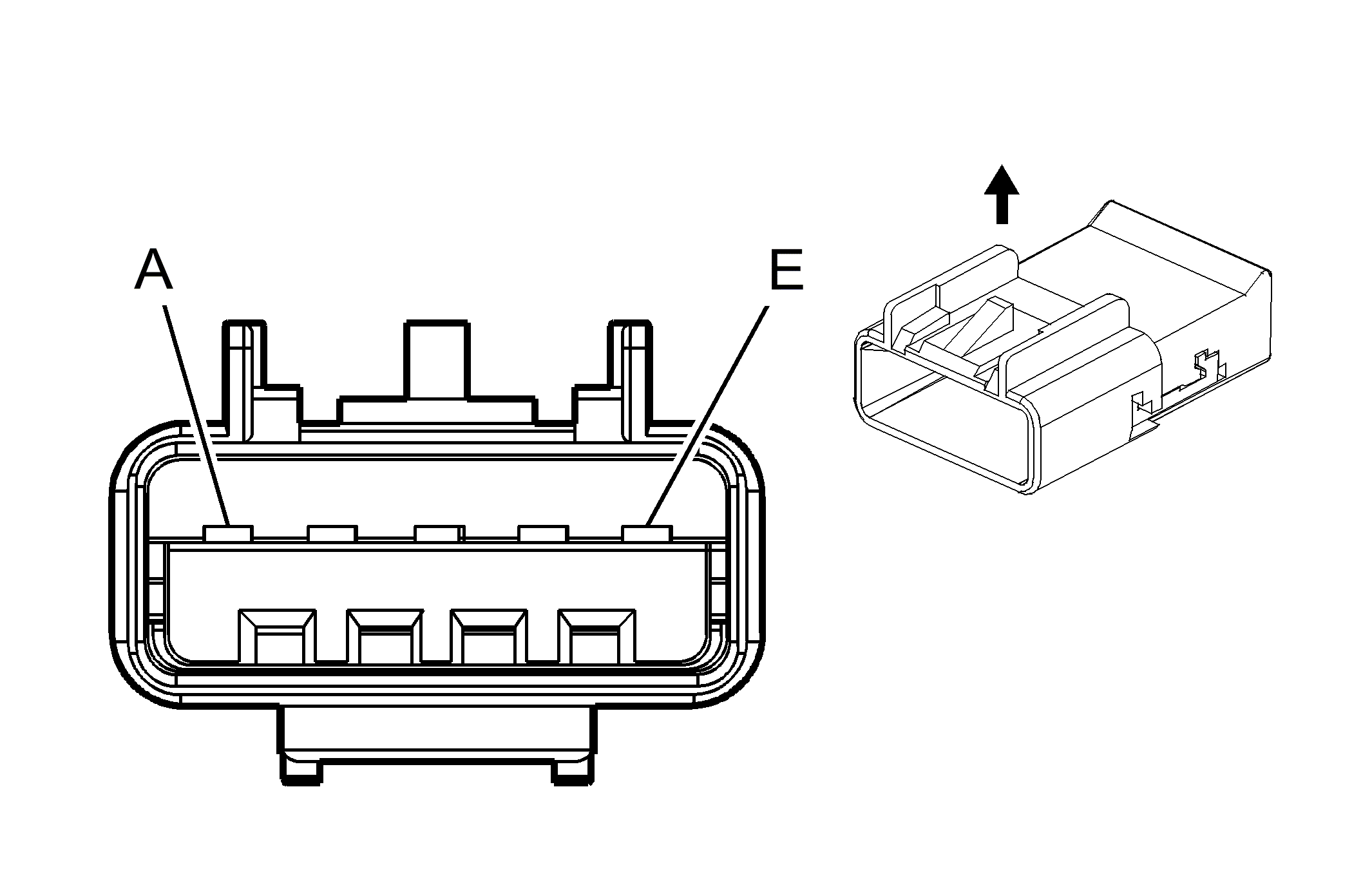

GM1849815Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332138
  • Service: See Catalog
  • Description: 5-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332139
  • Service: See Catalog
  • Description: 5-Way M GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X309 Body Harness to the Passenger Seat Harness (without KA1)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.35 RD/WH 840 Battery Positive Voltage A 0.35 OG 840 Battery Positive Voltage
B 0.35 BK/WH 651 Ground B 0.35 BK 651 Ground
C 0.35 PK 5057 Low Reference C 0.35 PK 5057 Low Reference
D 0.35 OG 1362 Seat Belt Switch - Right - Signal D 0.35 RD 1362 Seat Belt Switch - Right - Signal
E 0.35 D-GN 5060 Low Speed GMLAN Serial Data E 0.35 D-GN 5060 Low Speed GMLAN Serial Data
