X226 Instrument Panel Harness to the Shifter Jumper Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

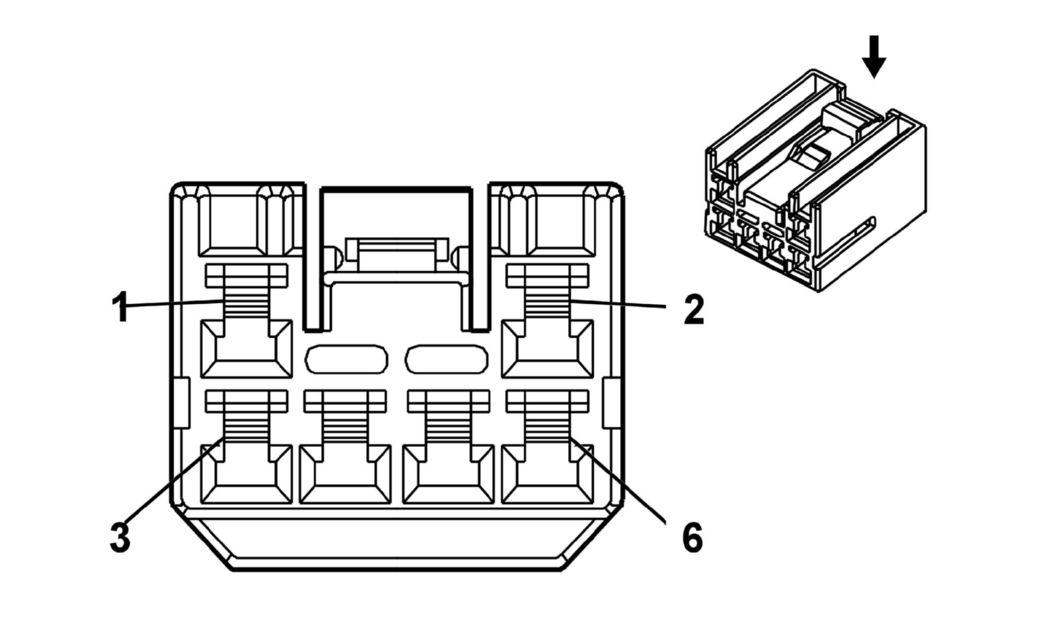

Connector Part Information OEM: 936268-1 Service: See Catalog Description: 6-Way F 090 Series (WH)	Connector Part Information OEM: 936271-1 Service: See Catalog Description: 6-Way M 090 Series (WH)
Terminal Part Information Terminal/Tray: 368083-1/26 Core/Insulation Crimp: E/2 Release Tool/Test Probe: 15315247/J-35616-18 (BK)	Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

X226 Instrument Panel Harness to the Shifter Jumper Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.35 PU	1375	12-Volt Reference (LY7)	1	0.35 PK	1375	12-Volt Reference (LY7)
1	0.35 PU	1375	12-Volt Reference (LY7)	1	0.35 PK	1375	12-Volt Reference (LY7)
2	0.35 PU/WH	5905	Key Capture/Column Lock Shift Position Signal	2	0.35 RD/WH	5905	Key Capture/Column Lock Shift Position Signal
3	0.35 BK	1450	Ground	3	0.35 BK	1450	Ground
4	0.35 PU	5526	Tap Up/Tap Down Switch Signal (LY7)	4	0.35 YE	5526	Tap Up/Tap Down Switch Signal (LY7)
5	0.35 PU/WH	1630	Steering Column Key Cylinder Lock Solenoid Control	5	0.35 BN	1630	Steering Column Key Cylinder Lock Solenoid Control
6	0.35 D-GN/WH	1135	Automatic Transmission Shift Lock Solenoid Control	6	0.35 D-GN/WH	1135	Automatic Transmission Shift Lock Solenoid Control
