X102 Body Harness to the Battery Cable Harness

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

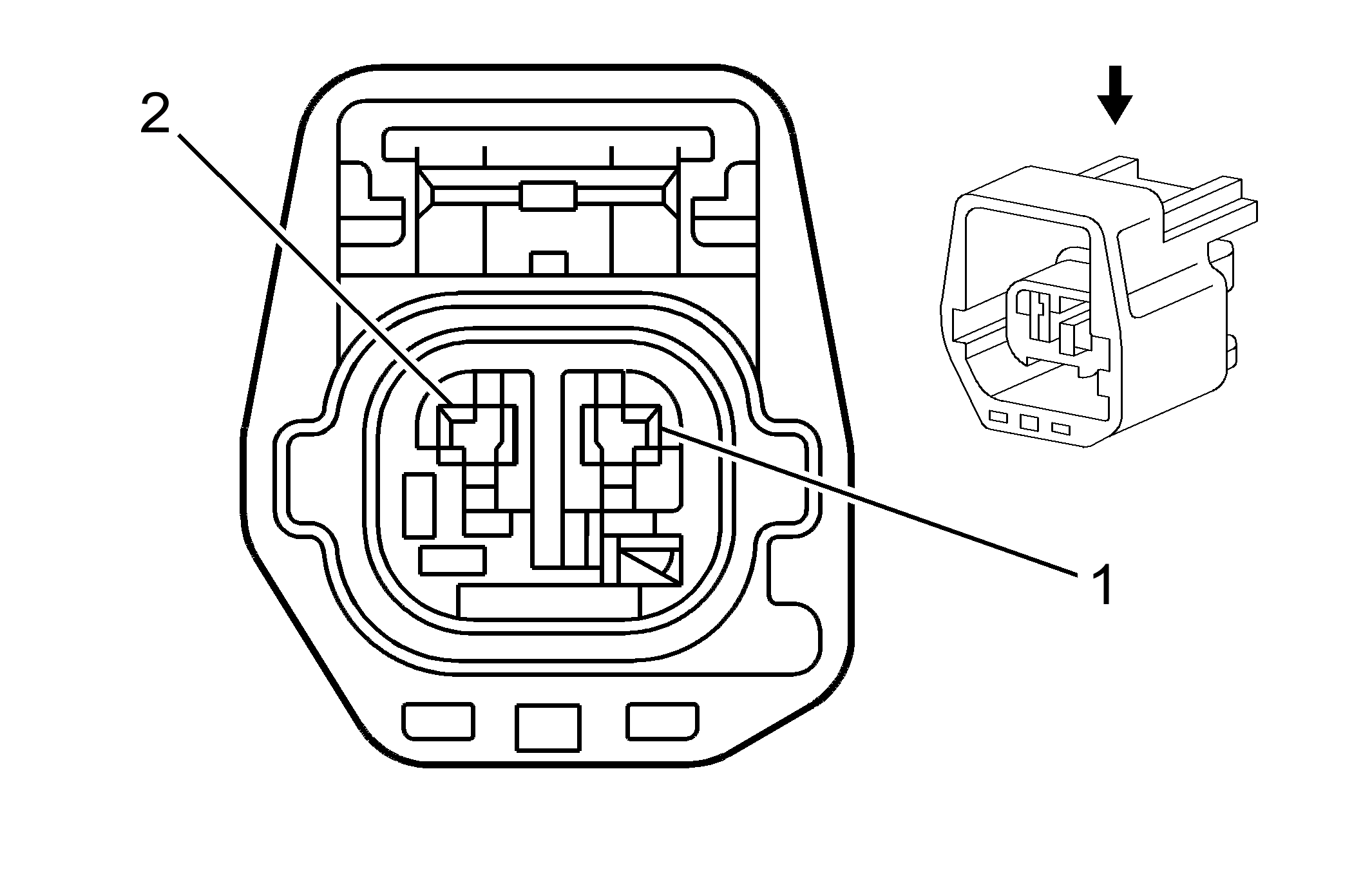

GM888601Courtesy of GENERAL MOTORS CORP.
GM897985Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5548-30
  • Service: 88953306
  • Description: 2-Way F YESC Series Weather Pack Sealed (BK)
 Connector Part Information
  • OEM: 7282-5548-30
  • Service: 88953303
  • Description: 2-Way M YESC Series Weather Pack Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
 Terminal Part Information
  • Terminal/Tray: 7114-4103-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-3 (GY)
X102 Body Harness to the Battery Cable Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.5 BK 50 Ground 1 0.8 BK 50 Ground
2 - - Not Used 2 - - Not Used
