Oil Pan Removal

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Oil Pan Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the oil pan bolts.

Fig 2: Identifying Spots RTV Sealant Is Used

Courtesy of GENERAL MOTORS CORP.

Using the pry points located at the edge of the oil pan separate the RTV sealant.

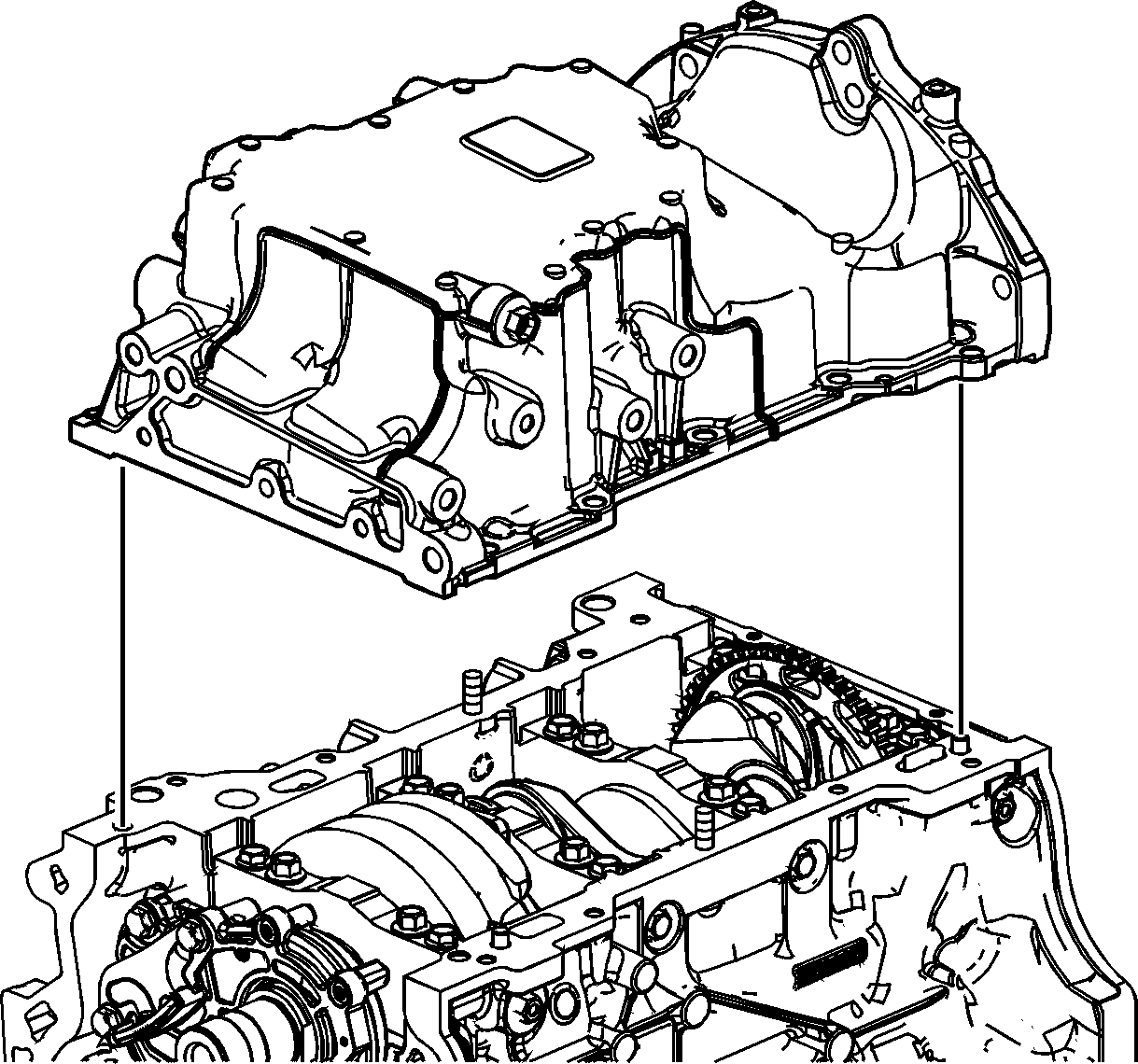

Fig 3: View Of Oil Pan & Block

Courtesy of GENERAL MOTORS CORP.

Remove the oil pan from the block.
