Upper to Lower Intake Manifold Disassemble Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

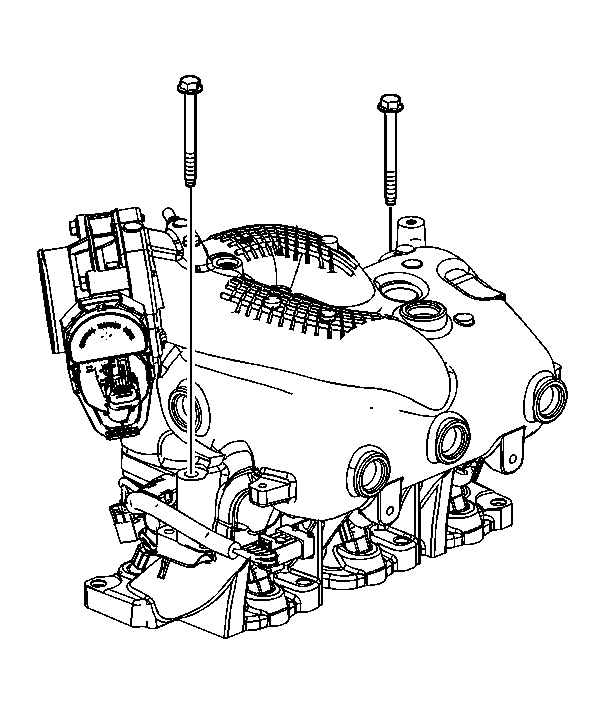

    Fig 1: Identifying Upper-To-Lower Intake Manifold Bolts
    GM1832126Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not reuse the upper-to-lower intake manifold gasket and the intake manifold-to-cylinder head sealing gaskets.
  1. Remove the upper-to-lower intake manifold bolts.

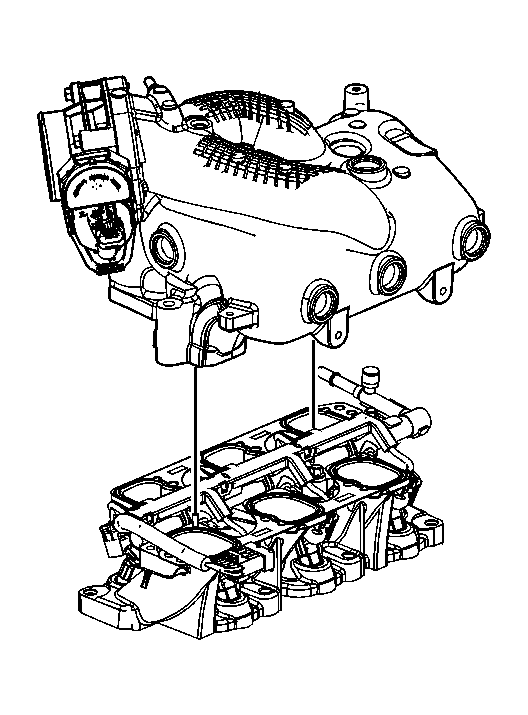

    2. Fig 2: Identifying Upper Intake Manifold
    GM1832129Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper intake manifold from the lower intake manifold.

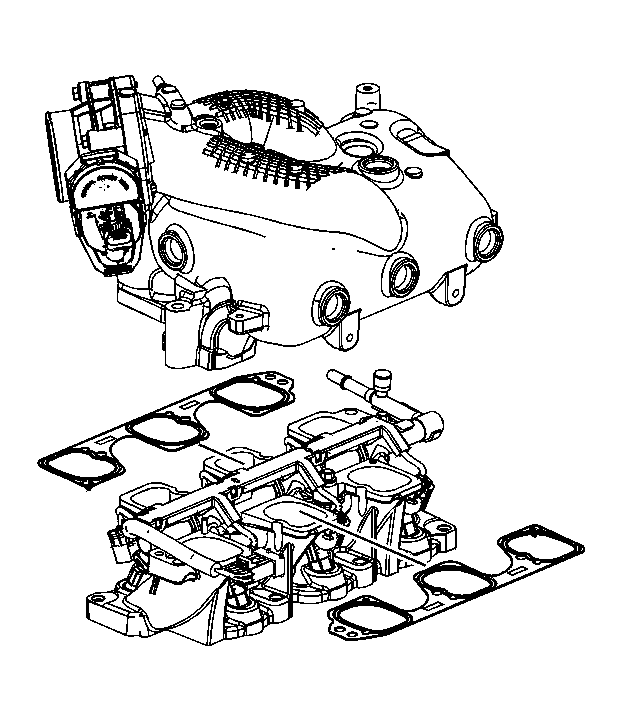

    3. Fig 3: Identifying Upper-To-Lower Intake Manifold Gaskets
    GM1832134Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the upper-to-lower intake manifold gaskets.
