Lower Intake Manifold Disassemble Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

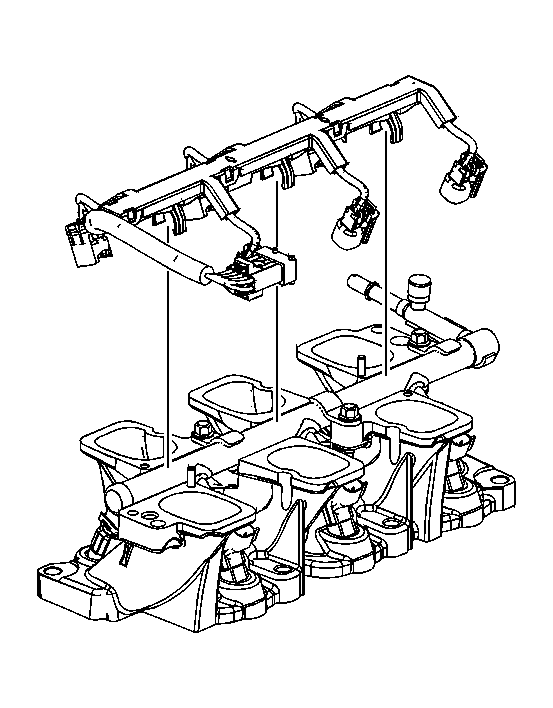

    Fig 1: Identifying Fuel Injector Wiring Harness & Connectors
    GM1832164Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the fuel injector wiring harness connectors and remove the fuel injector wiring harness.
    2. Fig 2: Identifying Fuel Injector Rail Bolts
    GM1832168Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuel injector rail bolts.
    3. Fig 3: Identifying Fuel Injector Rail
    GM1832171Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail.
    4. Fig 4: Identifying Upper -To-Lower Intake Manifold Alignment Pins
    GM1832176Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper-to-lower intake manifold alignment pins.
