Engine Flywheel Removal: Removal

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  1. Install the EN 46106  through the starter mounting hole. See Special Tools .

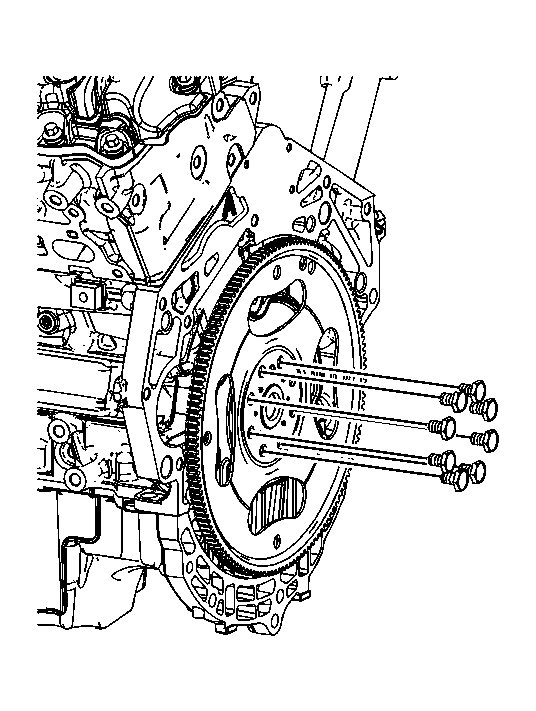

    2. Fig 2: Identifying Engine Flywheel Bolts
    GM1827940Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine flywheel bolts and discard.
    3. Fig 3: View Of Engine Flywheel
    GM1827939Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine flywheel from the crankshaft.
    4. Fig 4: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  4. Remove the EN 46106  . See Special Tools .
