Engine Coolant Thermostat Housing Removal

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

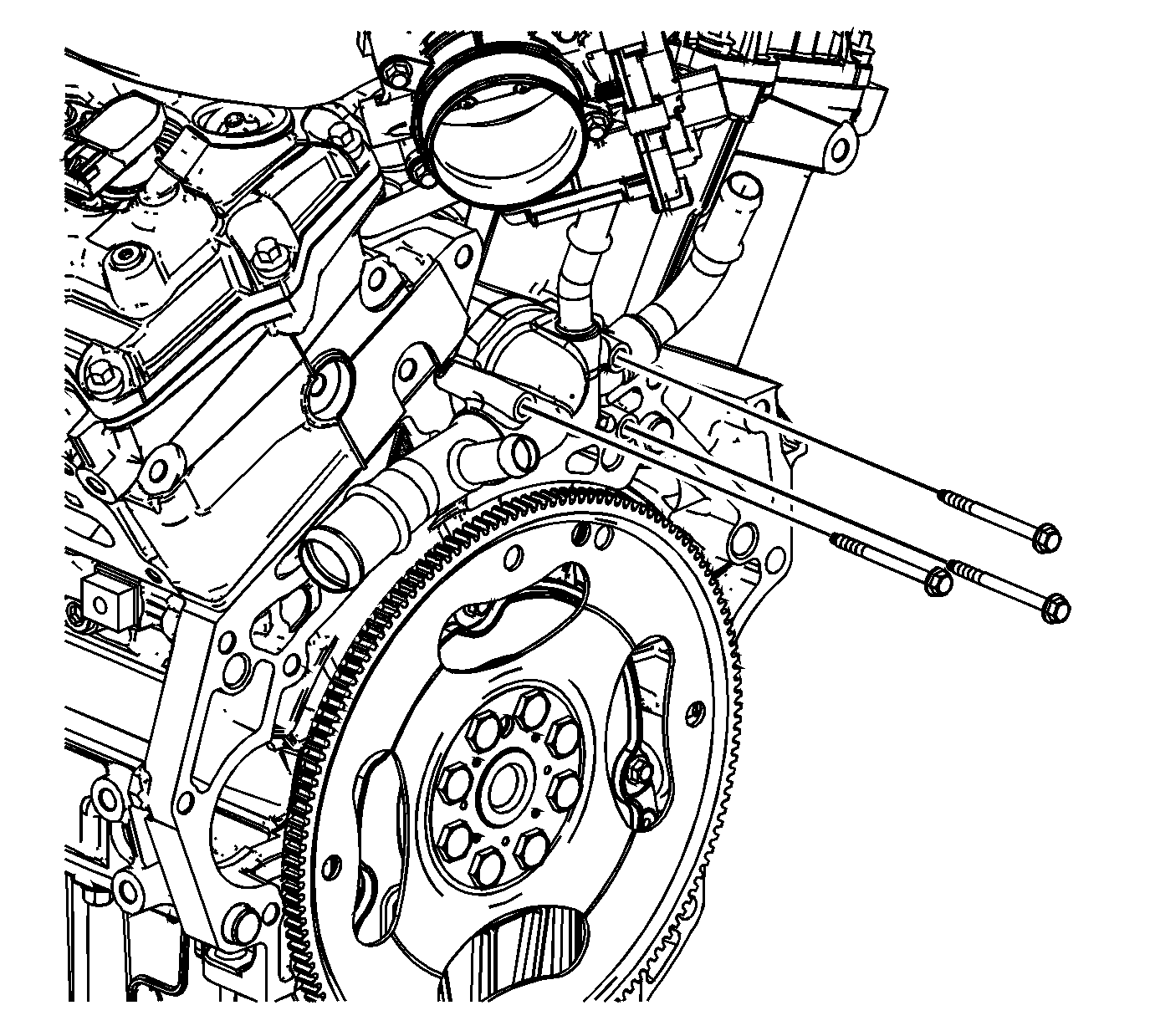

    Fig 1: Identifying Thermostat Housing Bolts
    GM1848526Courtesy of GENERAL MOTORS CORP.
  1. Remove the thermostat housing bolts.
    2. Fig 2: Identifying Thermostat Housing
    GM1848527Courtesy of GENERAL MOTORS CORP.
  2. Remove the thermostat housing.
    3. Fig 3: Identifying Thermostat Housing Gasket
    GM1848528Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the thermostat housing gasket.
