Power Seat Switch Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

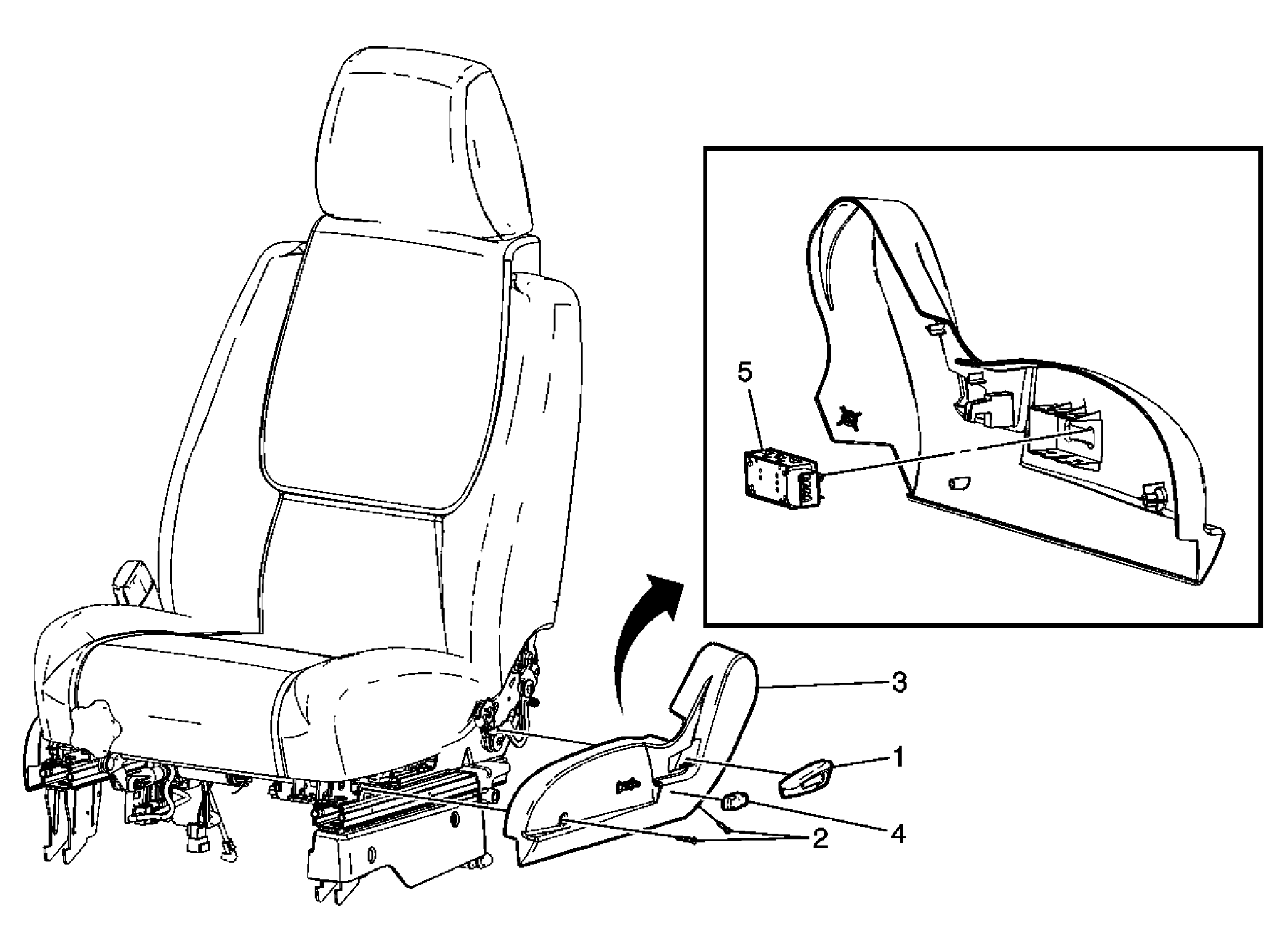

| Callout | Component Name |
|---|---|
| 1 | Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove. |
| 2 | Front Seat Outer Adjuster Finish Cover Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Front Seat Outer Adjuster Finish Cover Procedure: Disconnect the electrical connector. |
| 4 | Front Seat Adjuster Switch Knob Procedure: Using a flat-bladed tool, remove the knob from the seat switch. |
| 5 | Front Seat Adjuster Switch Tip: Use a small flat-bladed tool to remove the switch from the trim panel. |
