Crankshaft Balancer Installation: Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

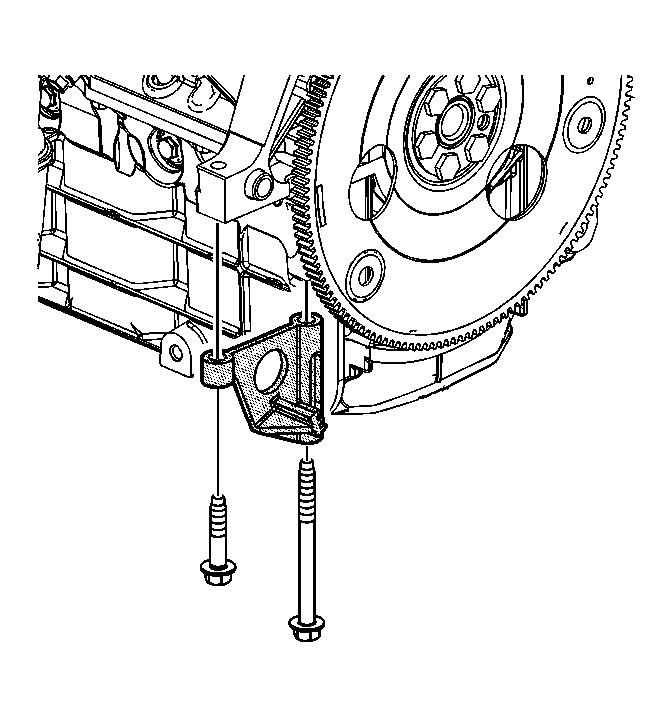

    Fig 1: Identifying EN-49010 At Starter Mounting Holes
    GM2044840Courtesy of GENERAL MOTORS CORP.
  1. Install the EN-49010:  tool to the starter mounting holes.
    2. Fig 2: Installing J 29113 Onto Crankshaft
    GM909647Courtesy of GENERAL MOTORS CORP.
  2. Apply sealer GM P/N 12378521 (Canadian P/N 88901148) or the equivalent to the keyway of the crankshaft balancer.
  3. Place the crankshaft balancer into position over the key in the crankshaft.
    4. CAUTION: Do NOT use a power-assisted tool with the special tool in order to remove or install this component. You cannot properly control the alignment of this component using a power-assisted tool, and this can damage the component.
  4. Install the J 29113:  puller onto the crankshaft.
  5. Rotate the hex nut on the J 29113:  puller to install the crankshaft balancer onto the crankshaft.
  6. Remove the J 29113:  puller from the crankshaft.
    7. Fig 3: View Of Crankshaft Balancer Bolt & Washer
    GM909519Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  7. Install the used crankshaft balancer bolt and tighten to 125 N.m (92 lb ft).
  8. Remove the used crankshaft balancer bolt.
  9. Install the NEW crankshaft balancer bolt.
    • Tighten the crankshaft balancer bolt a first pass to 125 N.m (92 lb ft) .
    • Tighten the crankshaft balancer bolt a final pass to 130 degrees using the J 45059:  meter .
  10. Remove the EN-49010:  tool.
