Transmission Front Mount Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

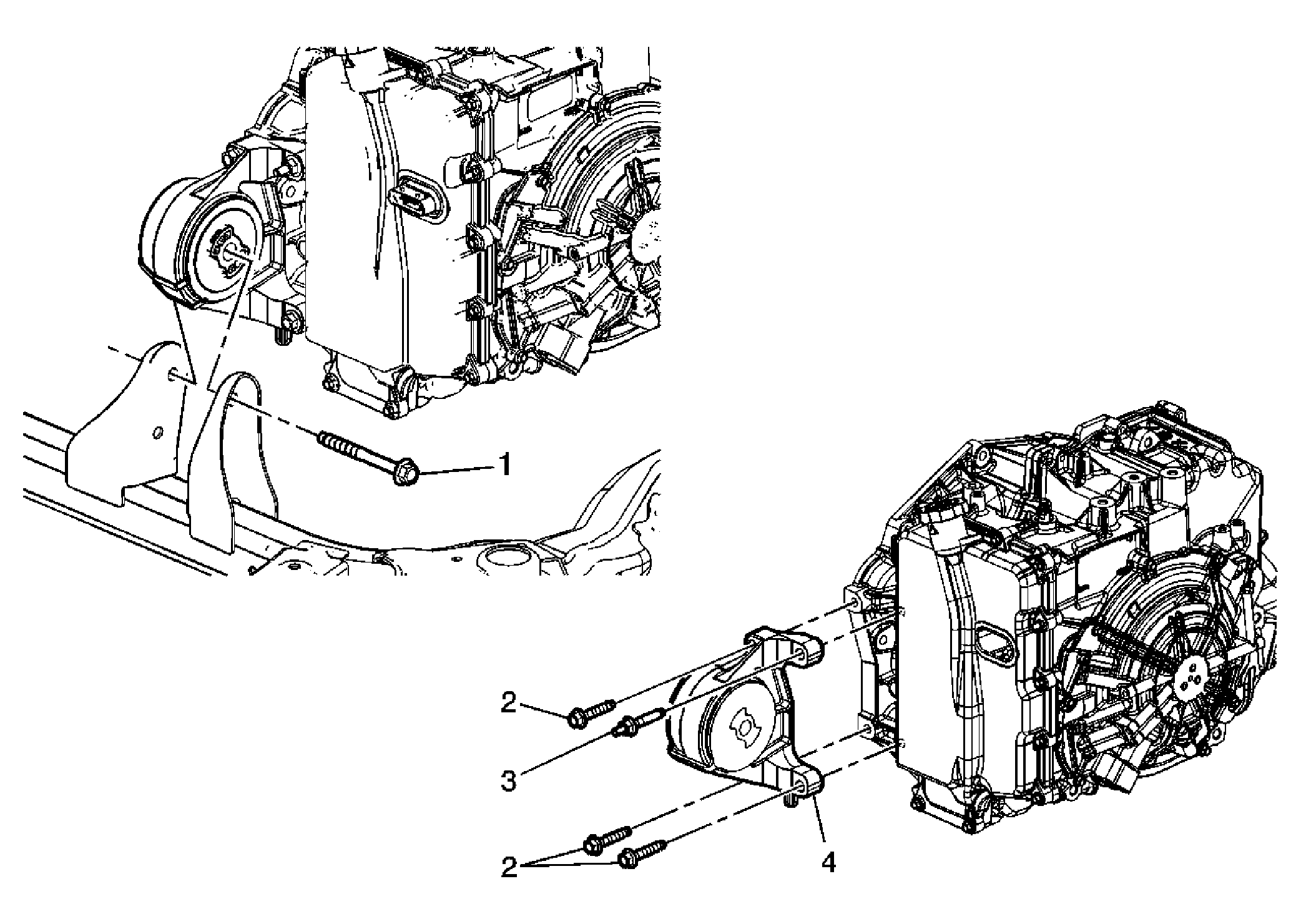

Fig 1: Identifying Transmission Front Mount

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Install the engine support fixture. Refer to Engine Support Fixture . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Transmission Mount Thru Bolt CAUTION: Refer to Fastener Caution . Tighten: 110 N.m (81 lb ft)
2	Front Transmission Mount Bolt (Qty: 4) Tighten: 50 N.m (37 lb ft)
3	Front Transmission Mount Stud Tighten: 50 N.m (37 lb ft)
4	Front Transmission Mount Tip: Remove the mount through the top of the engine compartment.
