Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: ISS, OSS, and TFT Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

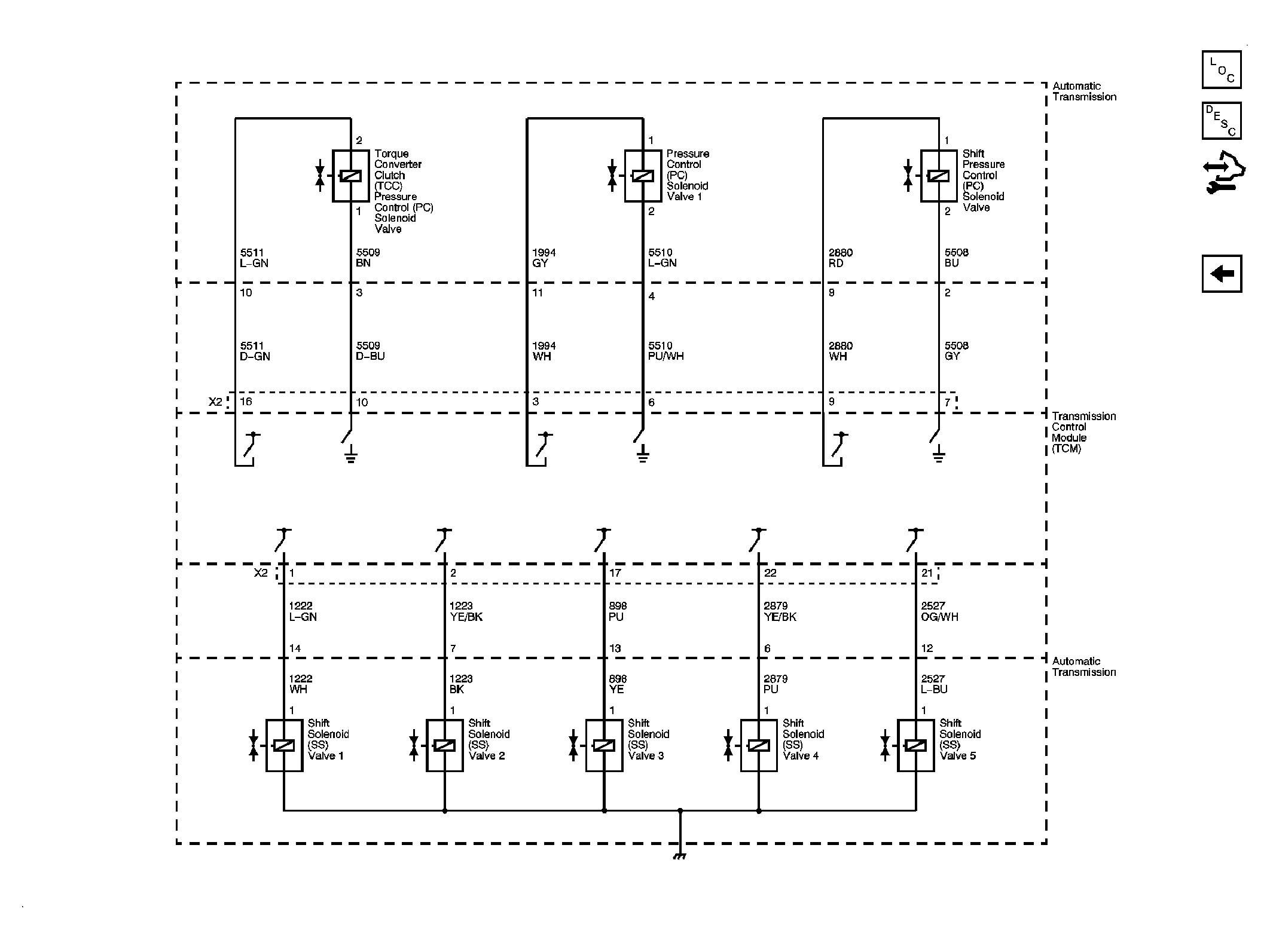

Fig 3: Shift and Pressure Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.
