Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

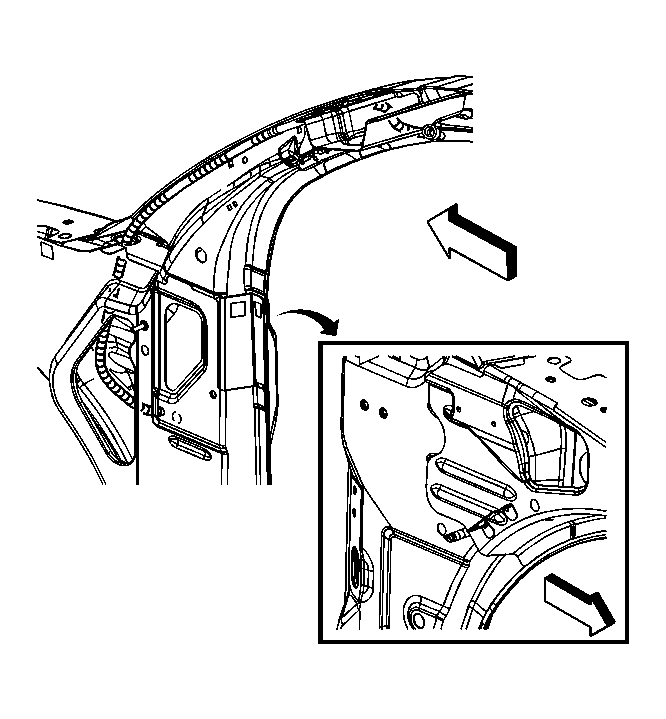

Fig 1: View Of Front Drain Hose At Front Hinge Pillar

Courtesy of GENERAL MOTORS CORP.

Push the drain hose into the hole in the front hinge pillar.
Connect the front drain hose to the retaining clips.

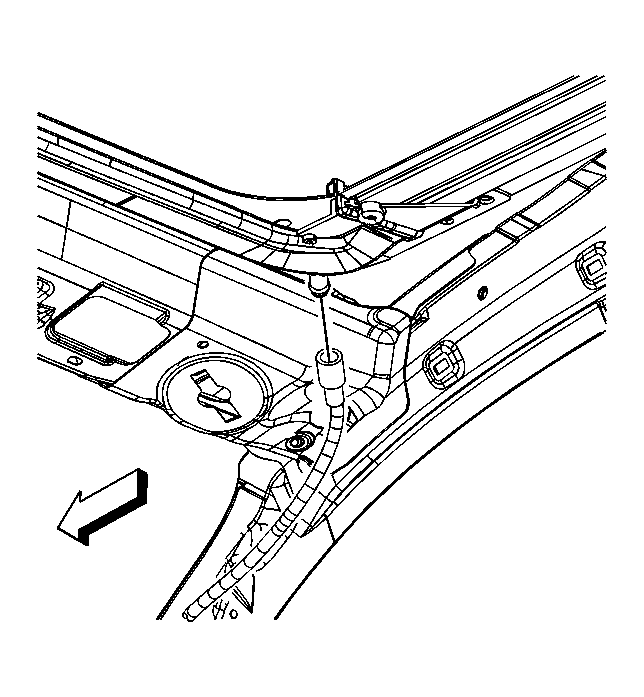

Fig 2: View Of Front Drain Hose At Sunroof Module

Courtesy of GENERAL MOTORS CORP.

Connect the drain hose to the sunroof module.
Install the headliner. Refer to Headlining Trim Panel Replacement .
