HVAC Schematics

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: A/C Compressor Controls Schematic

Courtesy of GENERAL MOTORS CORP.

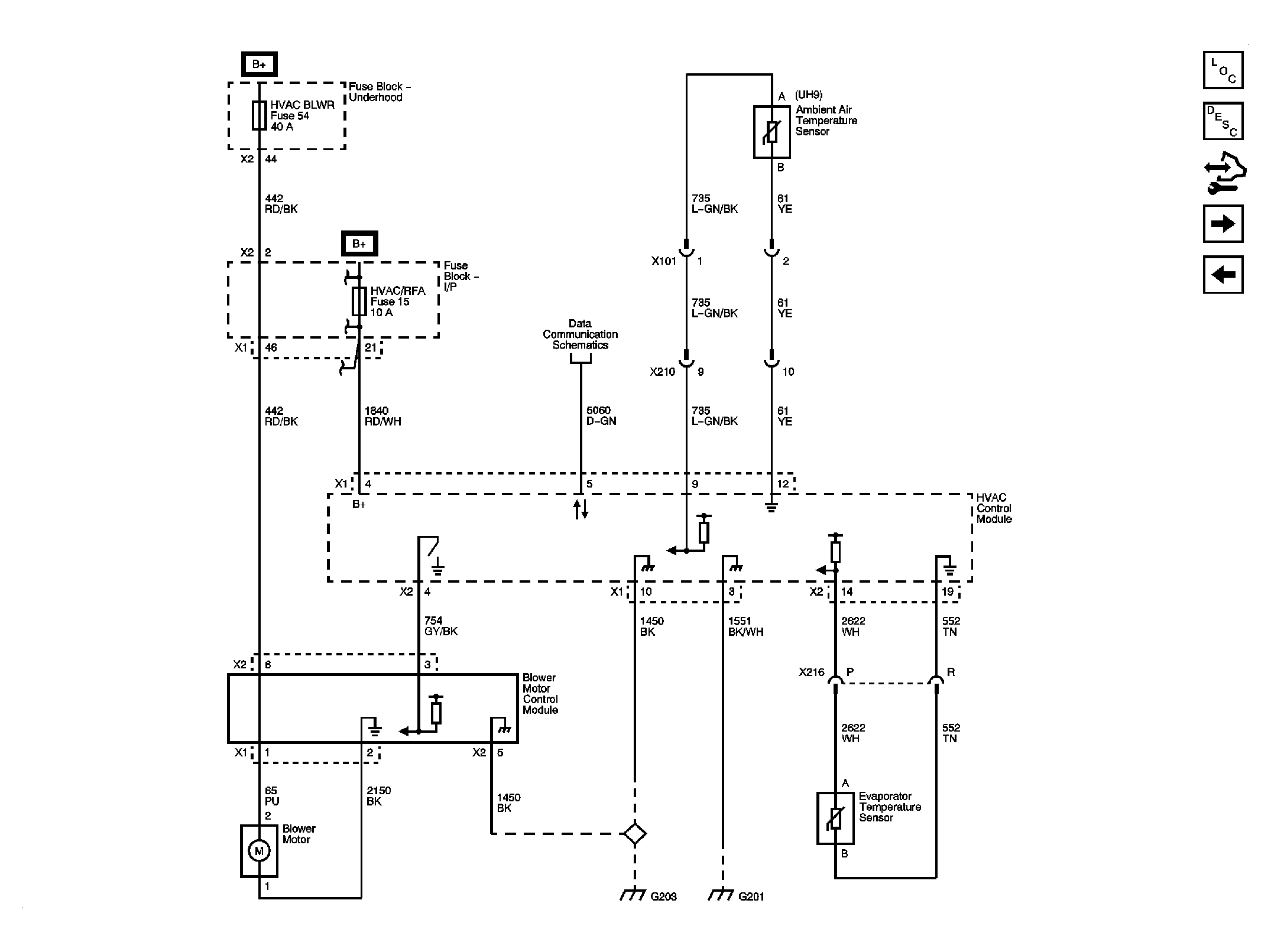

Fig 2: Sensors and Blower Motor Schematic

Courtesy of GENERAL MOTORS CORP.

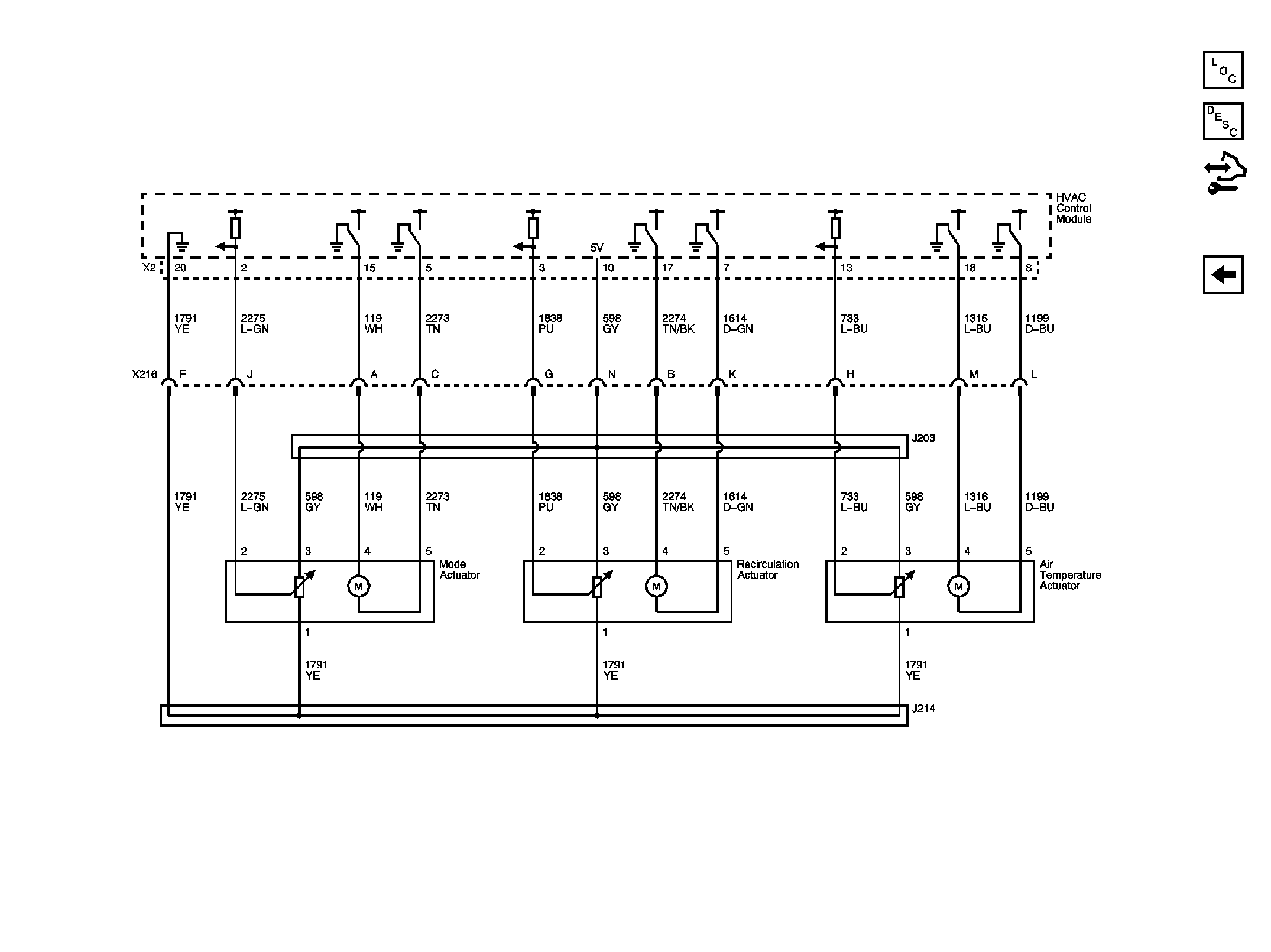

Fig 3: Actuators Schematic

Courtesy of GENERAL MOTORS CORP.
