Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

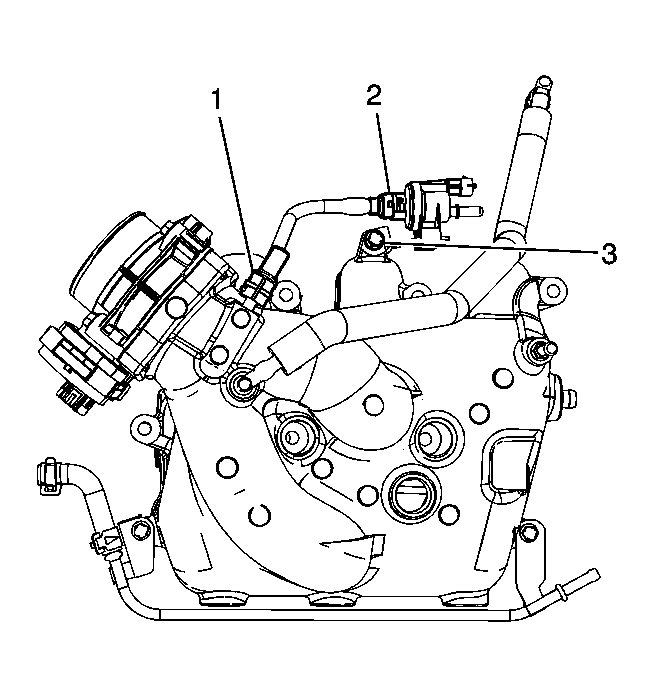

    Fig 1: Identifying EVAP Purge Solenoid
    GM1836392Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP purge solenoid.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the EVAP purge solenoid bracket bolt (3).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the EVAP pipe quick connect fitting (2) to the EVAP purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
    4. Fig 2: Identifying Fuel Feed Pipe Quick Connect Fitting At Fuel Rail
    GM1834975Courtesy of GENERAL MOTORS CORP.
  4. Connect the EVAP pipe quick connect fitting (1) to the EVAP purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
    5. Fig 3: Identifying Engine Wiring Harness Electrical Connector & Heated Oxygen Sensor (HO2S) Electrical Connector
    GM1836230Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (4) to the EVAP purge solenoid.
  6. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
