Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

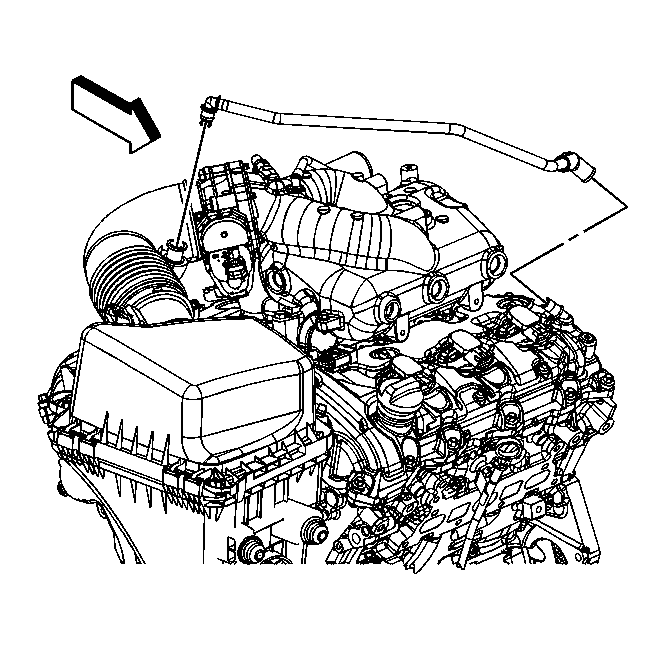

    Fig 1: Identifying Front Positive Crankcase Ventilation (PVC) Fresh Air Pipe
    GM1828316Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Remove the positive crankcase ventilation (PCV) tube from the air cleaner outlet duct.

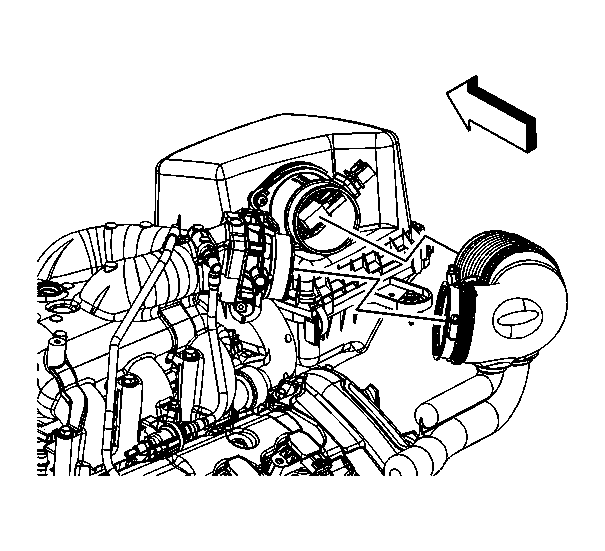

    3. Fig 2: Identifying Air Cleaner Intake Duct
    GM1835408Courtesy of GENERAL MOTORS CORP.
  3. Loosen the air cleaner outlet duct clamps at the throttle body and the mass air flow (MAF)/intake air temperature (IAT) sensor.
  4. Remove the air cleaner intake duct from the MAF/IAT sensor and the throttle body.
