Driver or Passenger Seat Cushion Heater Replacement (Without Passenger Presence System)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

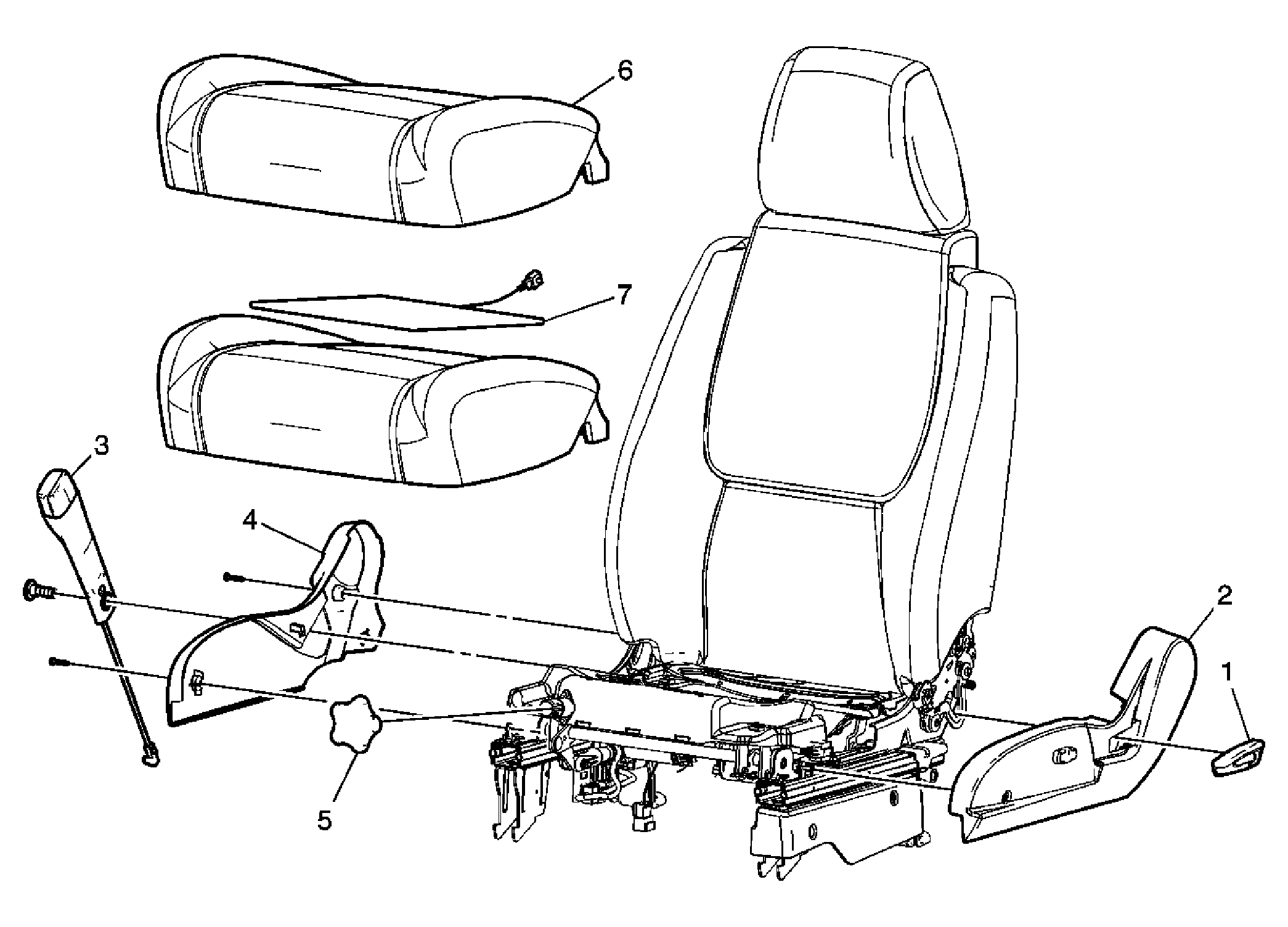

Fig 1: View Of Driver Seat & Passenger Seat Cushion Components - Front (Without Passenger Presence System)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat) or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
3	Front Seat Belt Buckle Refer to Driver or Passenger Seat Belt Buckle Replacement .
4	Front Seat Inner Adjuster Finish Panel Refer to Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat) .
5	Front Seat Lumbar Support Actuator Knob Tip: Remove the lumbar knob by pulling firmly on the knob.
6	Front Seat Cushion Cover Refer to Front Seat Cushion Cover and Pad Replacement .
7	Front Seat Heater Element Tip: Disconnect the electrical connector and gently pull on the heater element to remove the element from the seat foam. Be careful not to damage the foam pad.
