Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

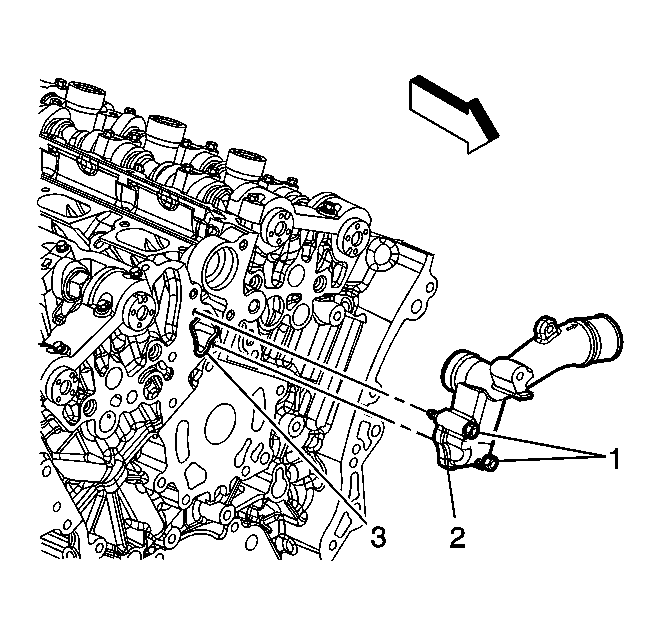

    Fig 1: Identifying Water Outlet Housing Bolts, Seal & O-Ring Seal
    GM1836710Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW water outlet housing seal (3).
  2. Install a NEW water outlet housing O-ring seal (2).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the water outlet housing bolts (1) and tighten to 10 N.m (89 lb in).
  4. Install the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LY7)  or Radiator Outlet Hose Replacement (LNJ) .
