Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply engine coolant to the bypass hose in order to ease installation.

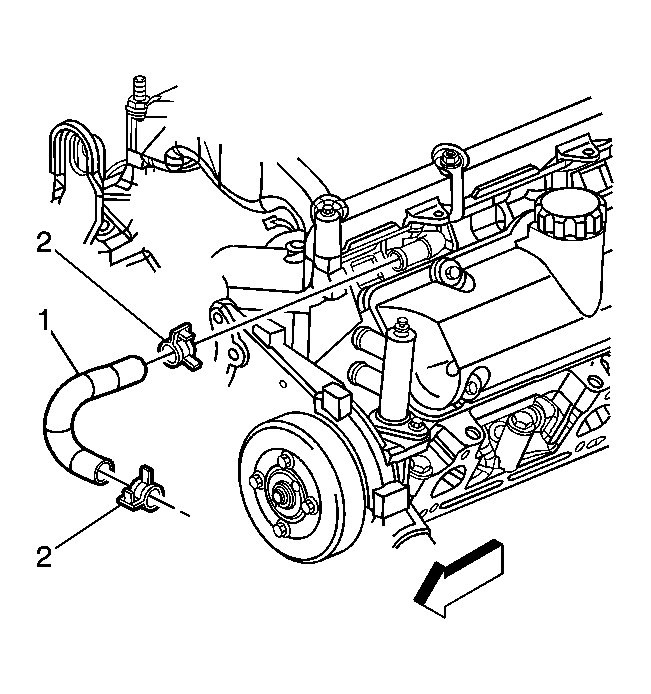

    2. Fig 1: View Of Thermal Bypass Hose & Clamp
    GM1087629Courtesy of GENERAL MOTORS CORP.
  2. Install the thermal bypass pipe hose (1).
  3. Position the thermal bypass pipe hose clamps (2) over the hose end connections.
  4. Fill the cooling system. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill)  or Cooling System Draining and Filling (LNJ GE 47716 Fill)  or Cooling System Draining and Filling (LNJ Static Fill)  or Cooling System Draining and Filling (LY7 Static Fill) .
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
