Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill)  or Cooling System Draining and Filling (LNJ GE 47716 Fill)  or Cooling System Draining and Filling (LNJ Static Fill)  or Cooling System Draining and Filling (LY7 Static Fill) .
    2. Fig 1: View Of Surge Tank Inlet Hose & Surge Tank
    GM1646806Courtesy of GENERAL MOTORS CORP.
  2. Remove the surge tank inlet hose clamp from the surge tank.
  3. Disconnect the surge tank inlet hose from the surge tank.

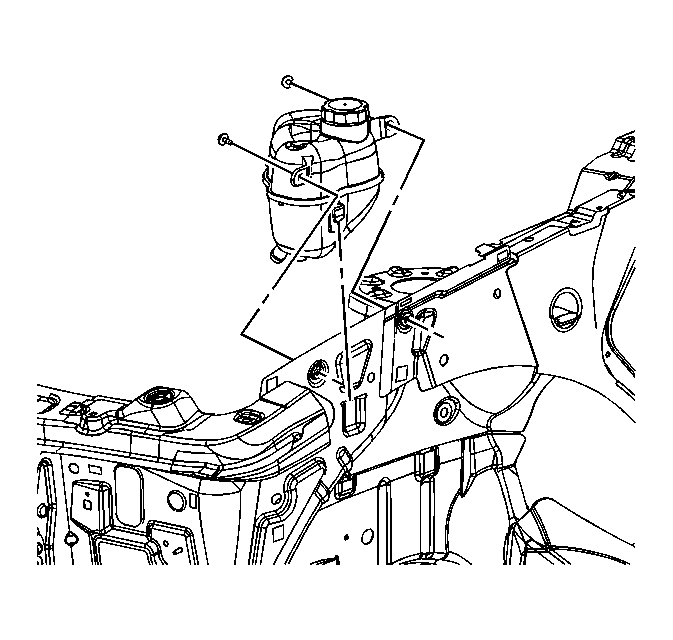

    4. Fig 2: View Of Surge Tank
    GM1646808Courtesy of GENERAL MOTORS CORP.
  4. Remove the surge tank bolts from the surge tank.
  5. Lift the surge tank to gain access to the heater outlet hose.
  6. Remove the heater outlet hose clamp from the surge tank.
  7. Remove the heater outlet hose from the surge tank.
  8. Remove the surge tank from the vehicle.
