Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

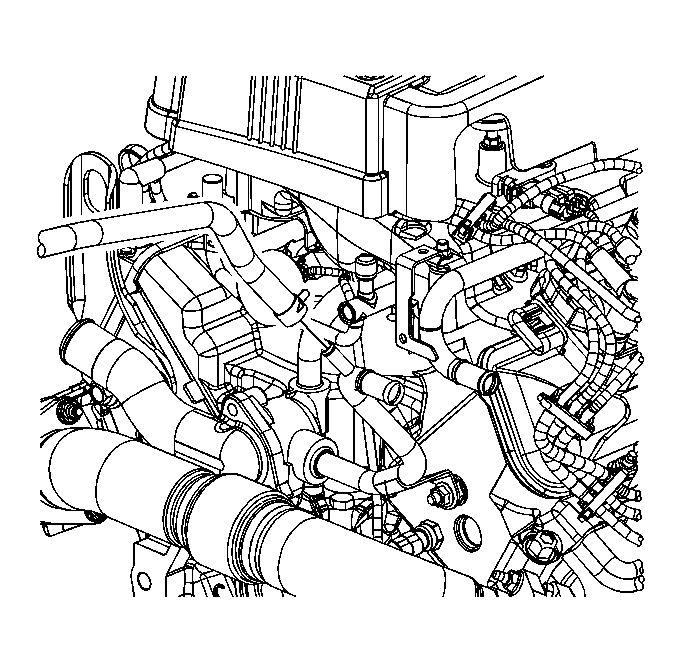

    Fig 1: Identifying Surge Tank Inlet Hose
    GM1646805Courtesy of GENERAL MOTORS CORP.
  1. Install the surge tank inlet hose to the engine.
  2. Install the surge tank inlet hose clamp to the engine.
    3. Fig 2: View Of Surge Tank Inlet Hose & Surge Tank
    GM1646806Courtesy of GENERAL MOTORS CORP.
  3. Install the surge tank inlet hose to the surge tank.
  4. Install the surge tank inlet hose clamp to the surge tank.
