Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

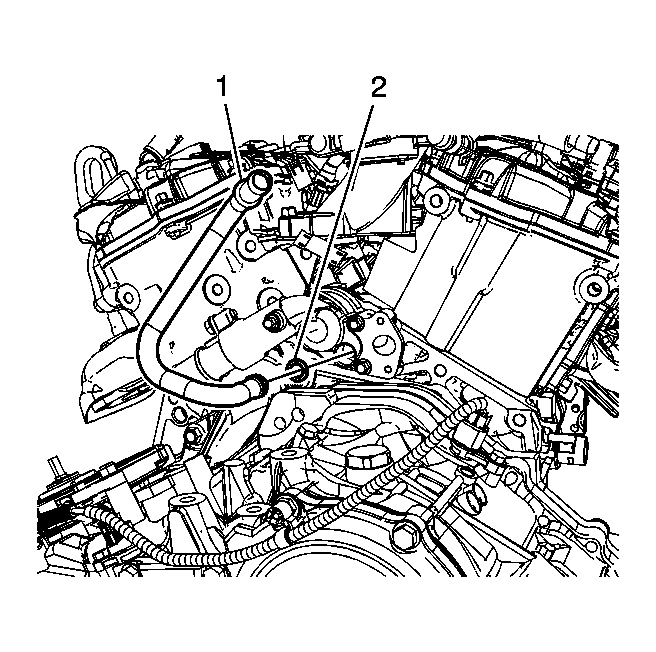

Fig 1: Identifying Heater Outlet Pipe

Courtesy of GENERAL MOTORS CORP.

Install a NEW heater inlet pipe O-ring.
Install the heater outlet pipe (1).

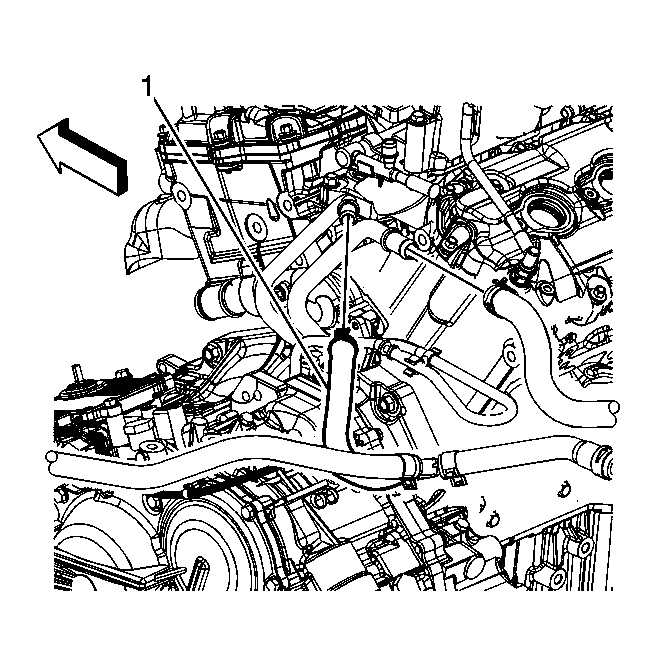

Fig 2: Identifying Heater Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the heater outlet hose (1) to the heater outlet pipe.
Install the heater inlet pipe. Refer to Heater Inlet Pipe Replacement (LY7) or Heater Inlet Pipe Replacement (LNJ) .
