Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill)  or Cooling System Draining and Filling (LNJ GE 47716 Fill)  or Cooling System Draining and Filling (LNJ Static Fill)  or Cooling System Draining and Filling (LY7 Static Fill) .

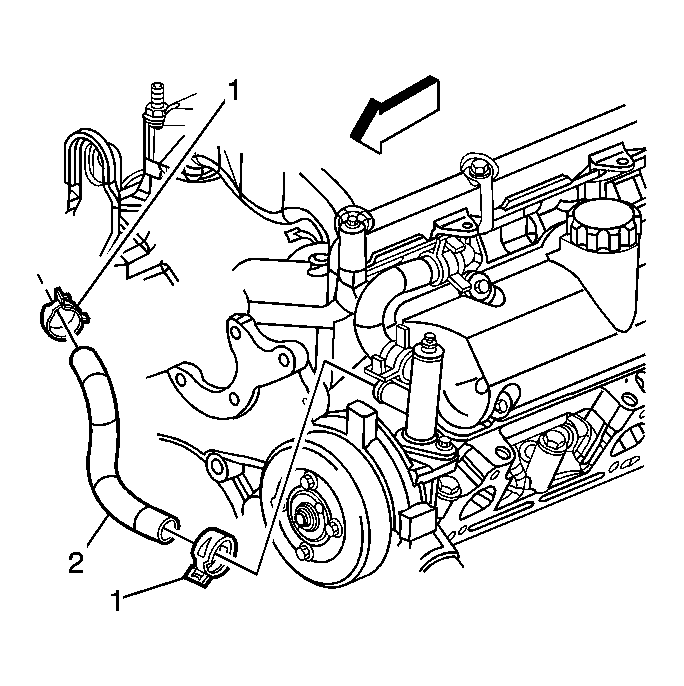

    3. Fig 1: View Of Heater Outlet Hose & Clamp
    GM1087623Courtesy of GENERAL MOTORS CORP.
  3. Remove the heater outlet hose clamps (1).
  4. Remove the heater outlet hose (2).
