Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

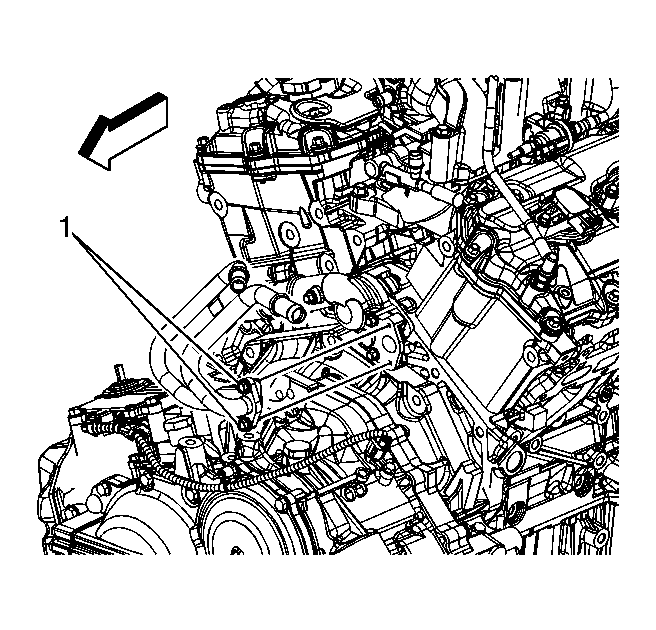

Fig 1: Identifying Heater Inlet Pipe Housing Bolts

Courtesy of GENERAL MOTORS CORP.

Install a NEW heater inlet pipe housing seal.

CAUTION: Refer to Fastener Caution .

Install the heater inlet pipe housing bolts (1) and tighten to 10 N.m (89 lb in).

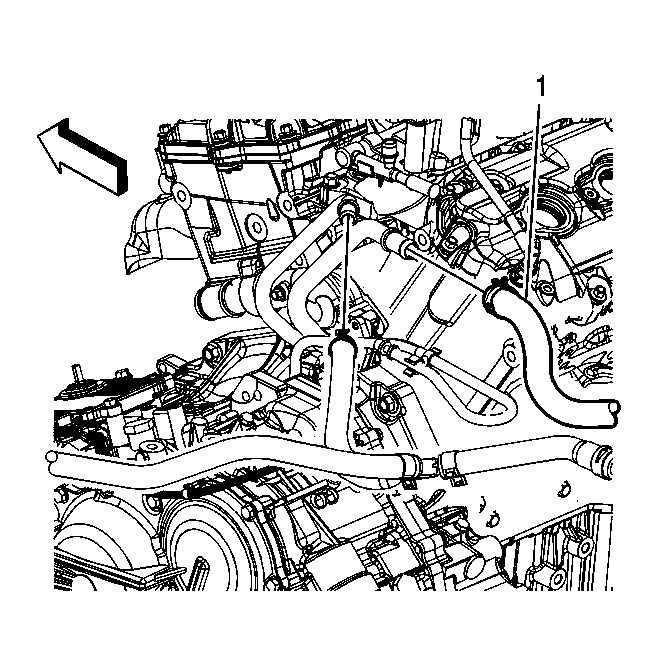

Fig 2: Identifying Heater Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the heater inlet hose (1) to the heater inlet pipe.
Refill the cooling system. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill) or Cooling System Draining and Filling (LNJ GE 47716 Fill) or Cooling System Draining and Filling (LNJ Static Fill) or Cooling System Draining and Filling (LY7 Static Fill) .
