  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill)  or Cooling System Draining and Filling (LNJ GE 47716 Fill)  or Cooling System Draining and Filling (LNJ Static Fill)  or Cooling System Draining and Filling (LY7 Static Fill) .
    3. Fig 1: Disconnecting/Connecting Heater Core Inlet Hose At Heater Inlet Pipe
    GM1327499Courtesy of GENERAL MOTORS CORP.
  3. Release and slide the heater core inlet hose clamp away from the heater inlet pipe connection.
  4. Disconnect the heater core inlet hose from the heater inlet pipe.

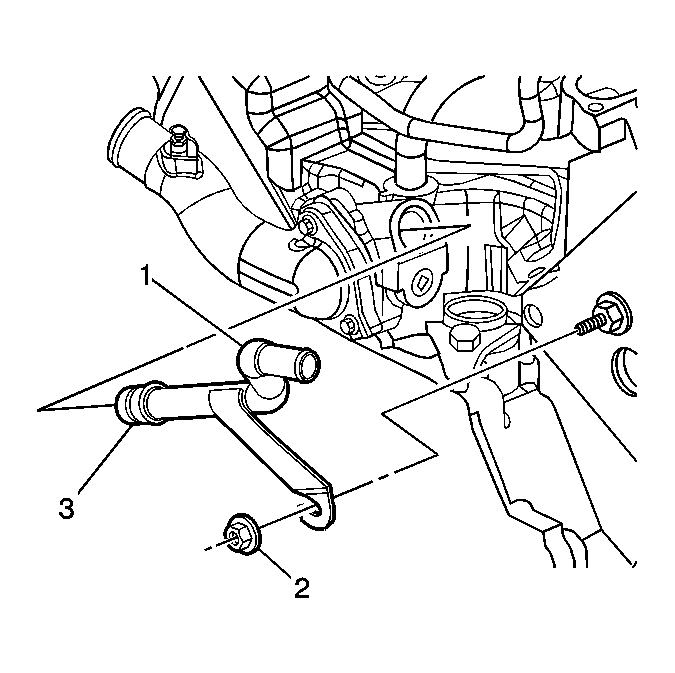

    5. Fig 2: View Of Heater Inlet Pipe, Nut & Seal
    GM1087621Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut (2).
  6. Remove the heater inlet pipe (1).
  7. Remove the seal (3) from the heater inlet pipe (1).
