Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

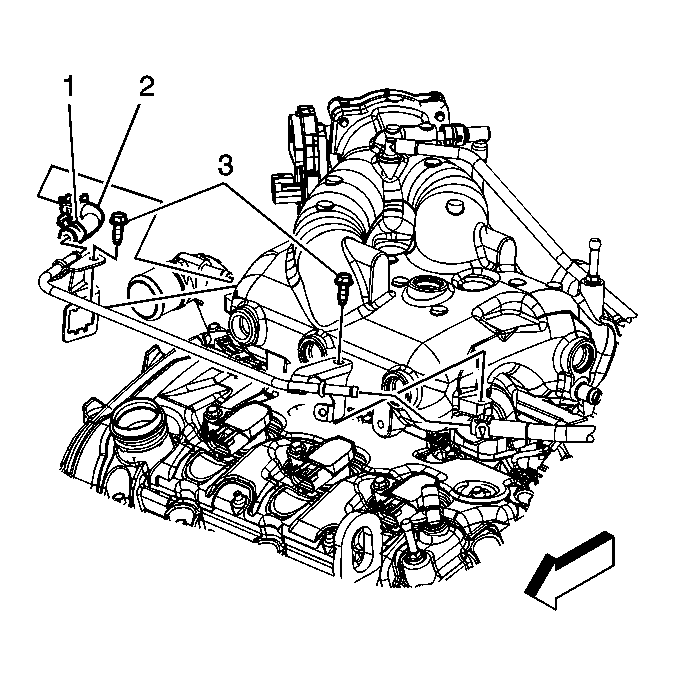

    Fig 1: Identifying Coolant Air Bleed Pipe Bolts
    GM1847144Courtesy of GENERAL MOTORS CORP.
  1. Install the coolant air bleed pipe to the engine.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the coolant air bleed pipe bolts (3) to the upper intake manifold. Tighten the bolt to 10 N.m (89 lb in).
  3. Install the coolant air bleed hose (2) to the coolant air bleed pipe.
  4. Position the coolant air bleed hose clamp (1) at the coolant air bleed hose.
  5. Install the surge tank inlet hose. Refer to Radiator Surge Tank Inlet Hose/Pipe Replacement (LNJ)  or Radiator Surge Tank Inlet Hose/Pipe Replacement (LY7) .
  6. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
