Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

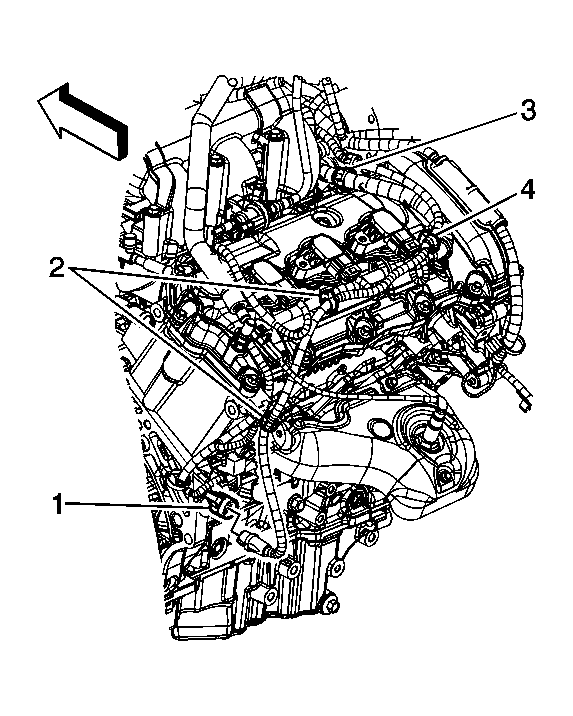

    Fig 1: Identifying Coolant Heater & Cord Clips
    GM1837334Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the coolant heater power supply cord from the coolant heater (1).
  3. Disconnect the coolant heater cord clip (2) from the coolant heater cord.
  4. Lower the vehicle.
  5. Disconnect the coolant heater cord clips (3, 4) from the engine wiring harness conduit.

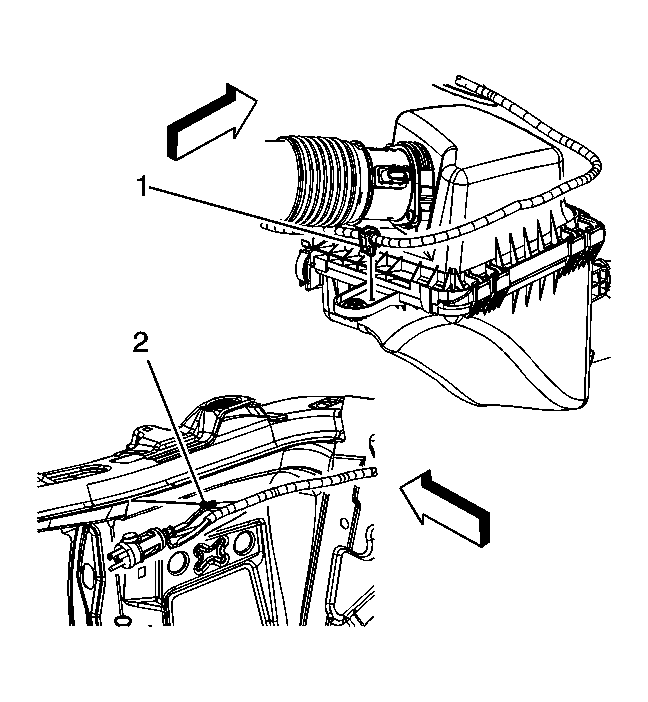

    6. Fig 2: Identifying Coolant Heater Cord Clips
    GM1837335Courtesy of GENERAL MOTORS CORP.
  6. Remove the coolant heater cord clip (1) from the air cleaner assembly.
  7. Remove the coolant heater cord clip (2) from the fender panel.
  8. Remove the coolant heater cord from the vehicle.
