Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

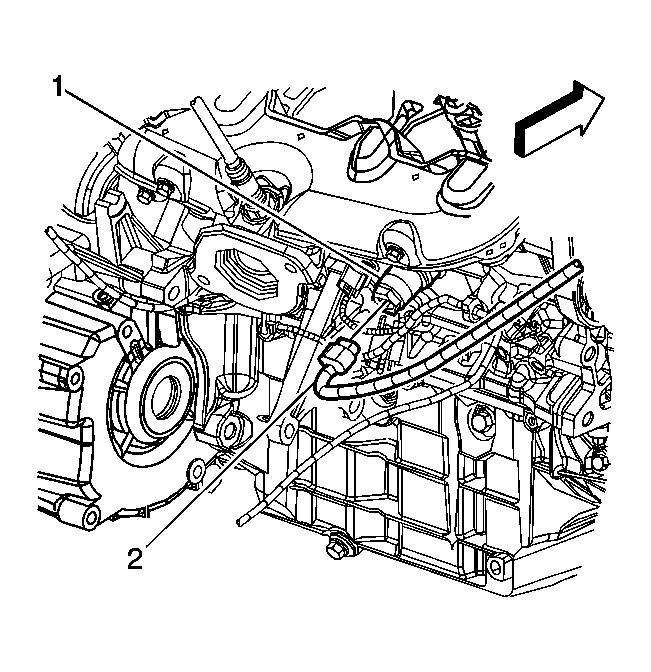

    Fig 1: Identifying Coolant Heater Cord
    GM1422755Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the coolant heater cord (2) from the coolant heater (1).

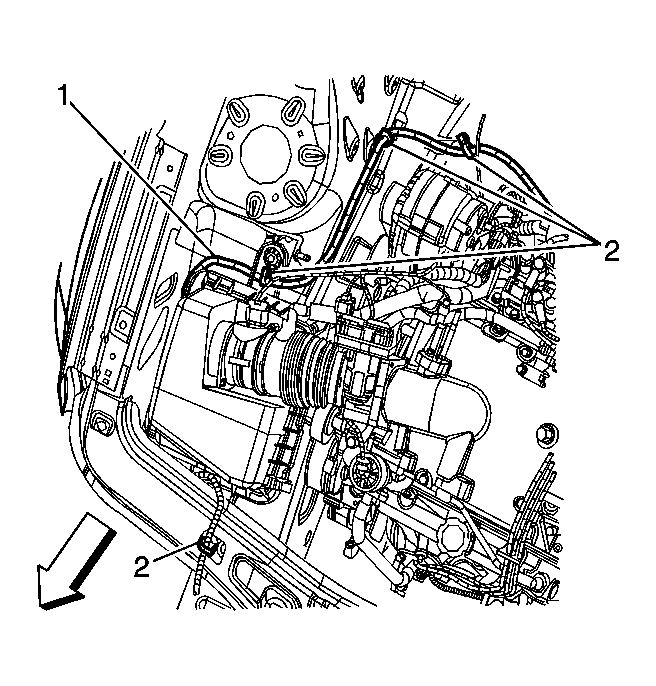

    2. Fig 2: View Of Coolant Heater Cord At Cord Retainers
    GM1422757Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the coolant heater cord (1) from the cord retainers (2).
  3. Remove the coolant heater cord (1) from the vehicle.
