Horn Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

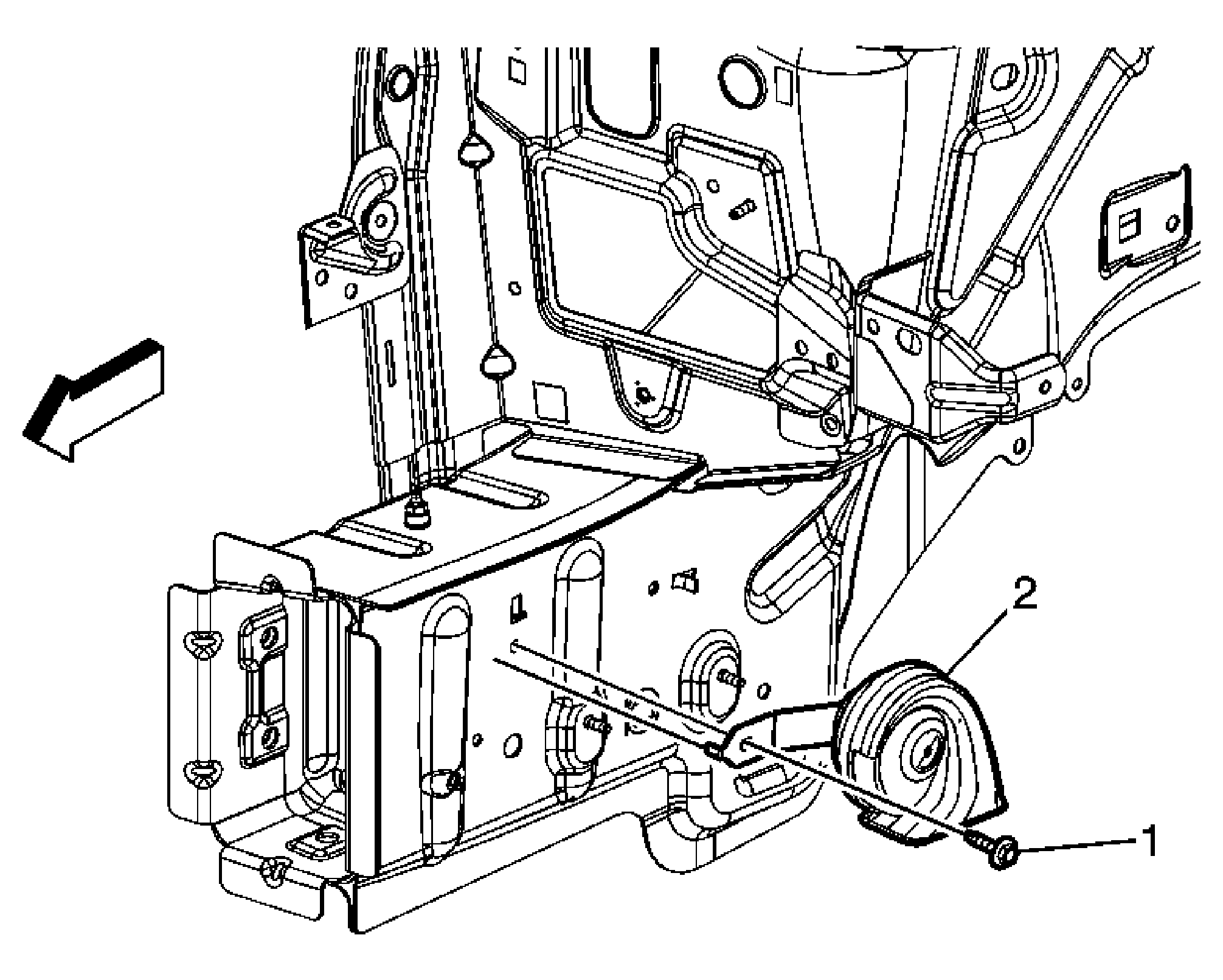

Fig 1: View Of Horn

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Horn Procedure Disconnect the electrical connector. Remove the 2 push-pin retainers from the left fender liner and reposition the fender liner to access the horn.

Callout

Component Name

Horn Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Horn

Procedure

Disconnect the electrical connector.
Remove the 2 push-pin retainers from the left fender liner and reposition the fender liner to access the horn.
