Outside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

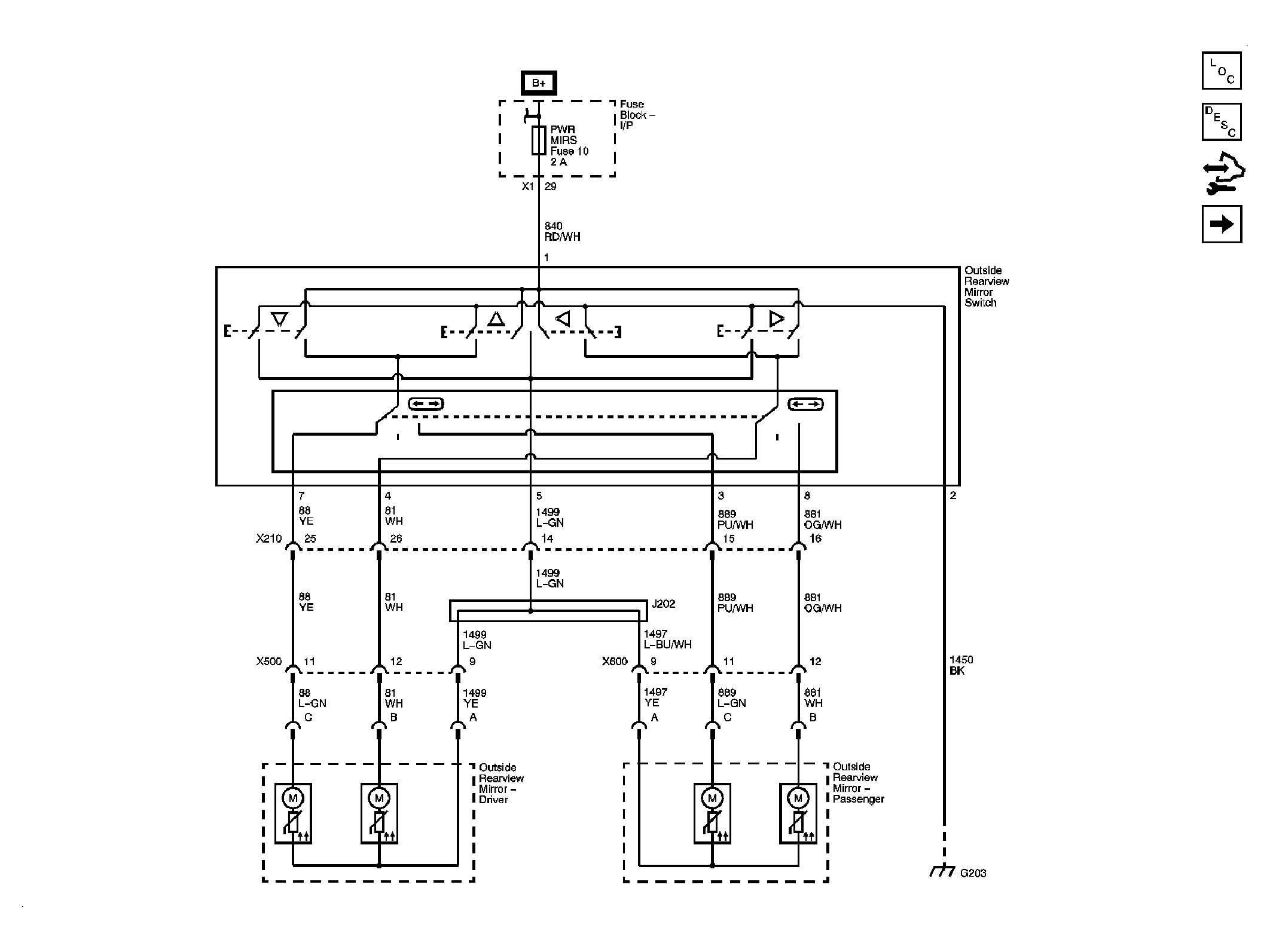

Fig 1: Outside Rearview Mirror Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heated Mirrors Schematic

Courtesy of GENERAL MOTORS CORP.
