Wiper/Washer Schematics

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

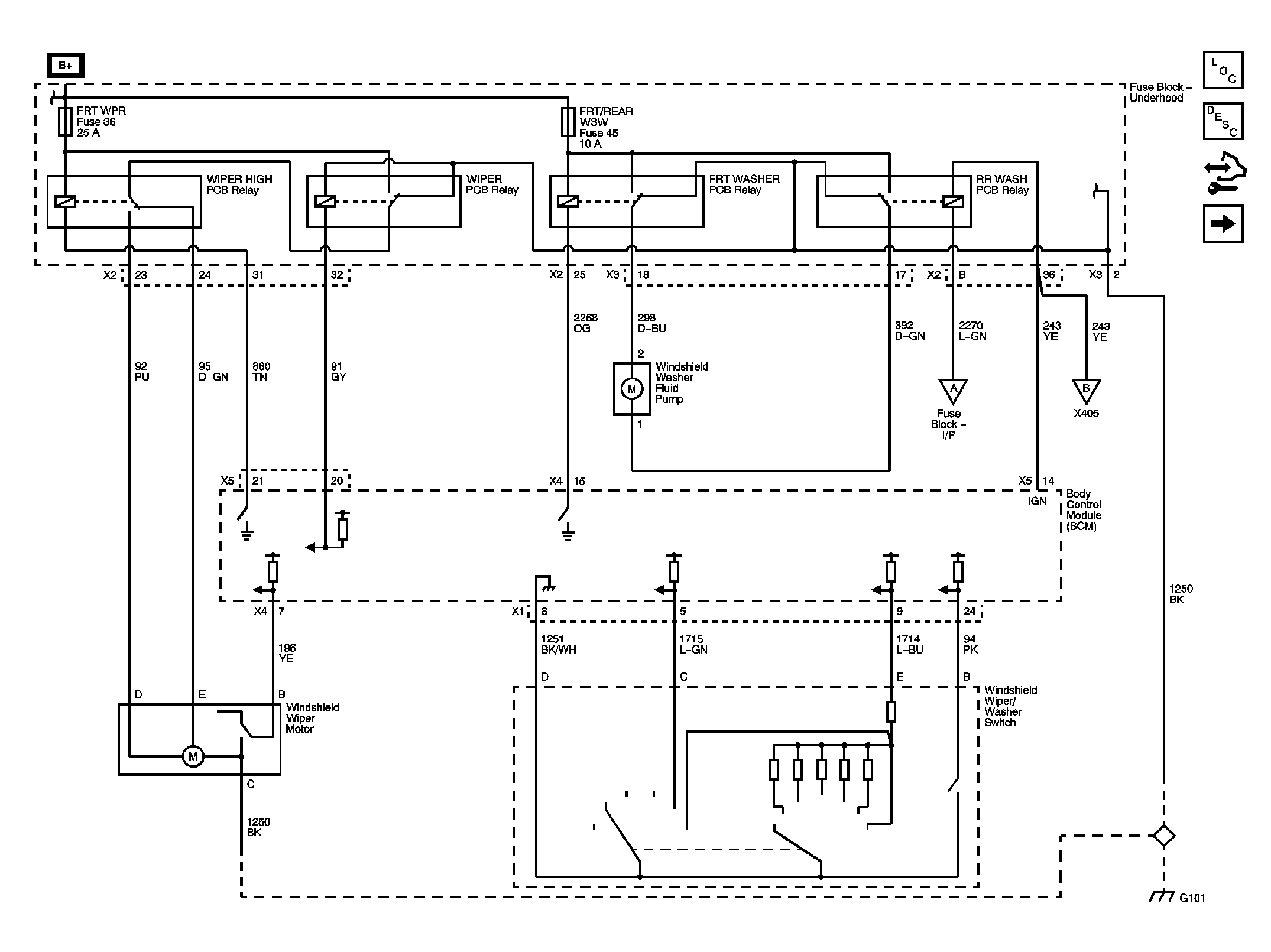

Fig 1: Front Wiper/Washer Schematic
GM2086277Courtesy of GENERAL MOTORS CORP.

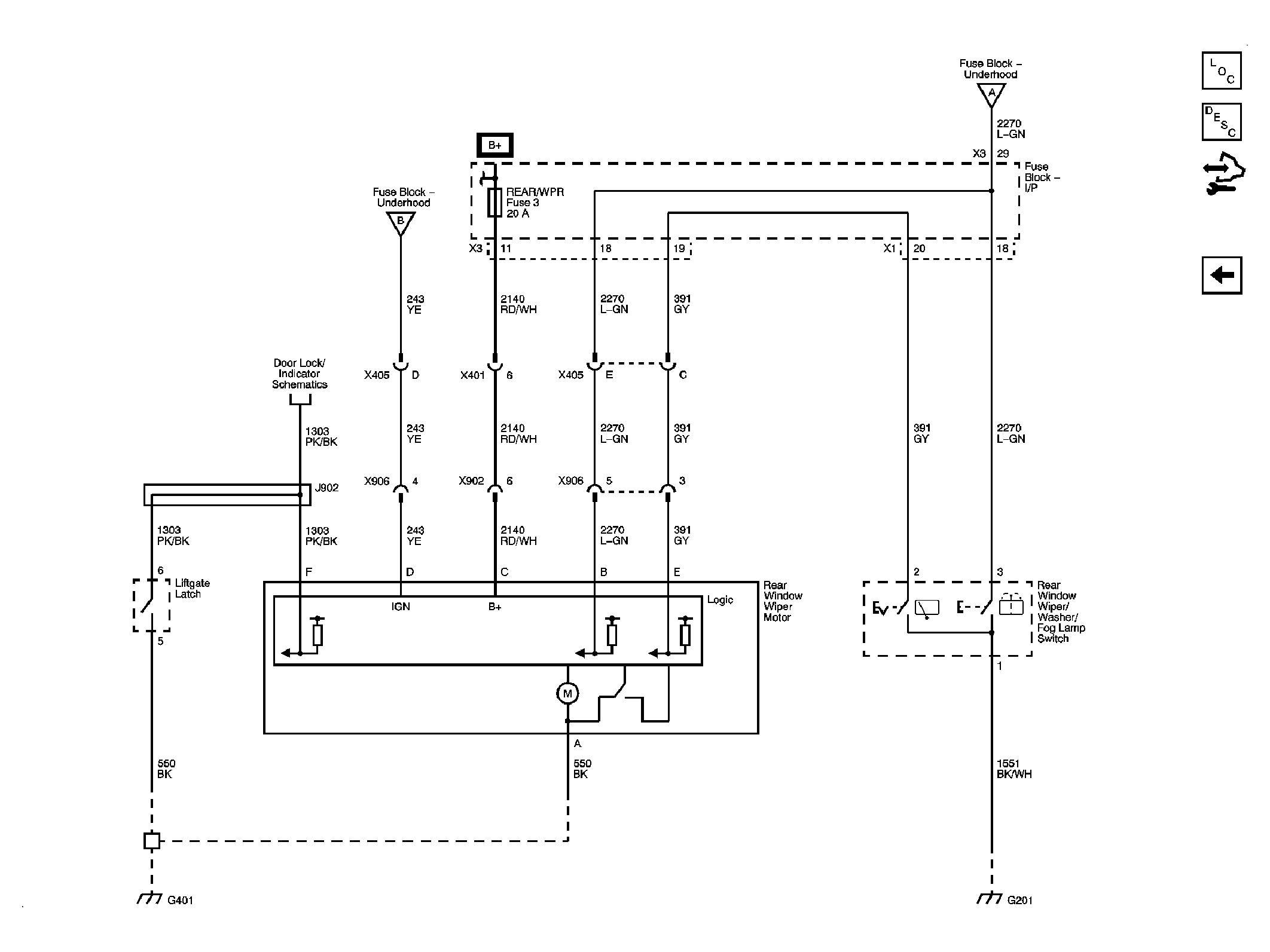

Fig 2: Rear Wiper/Washer Schematic
GM2086280Courtesy of GENERAL MOTORS CORP.
