Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

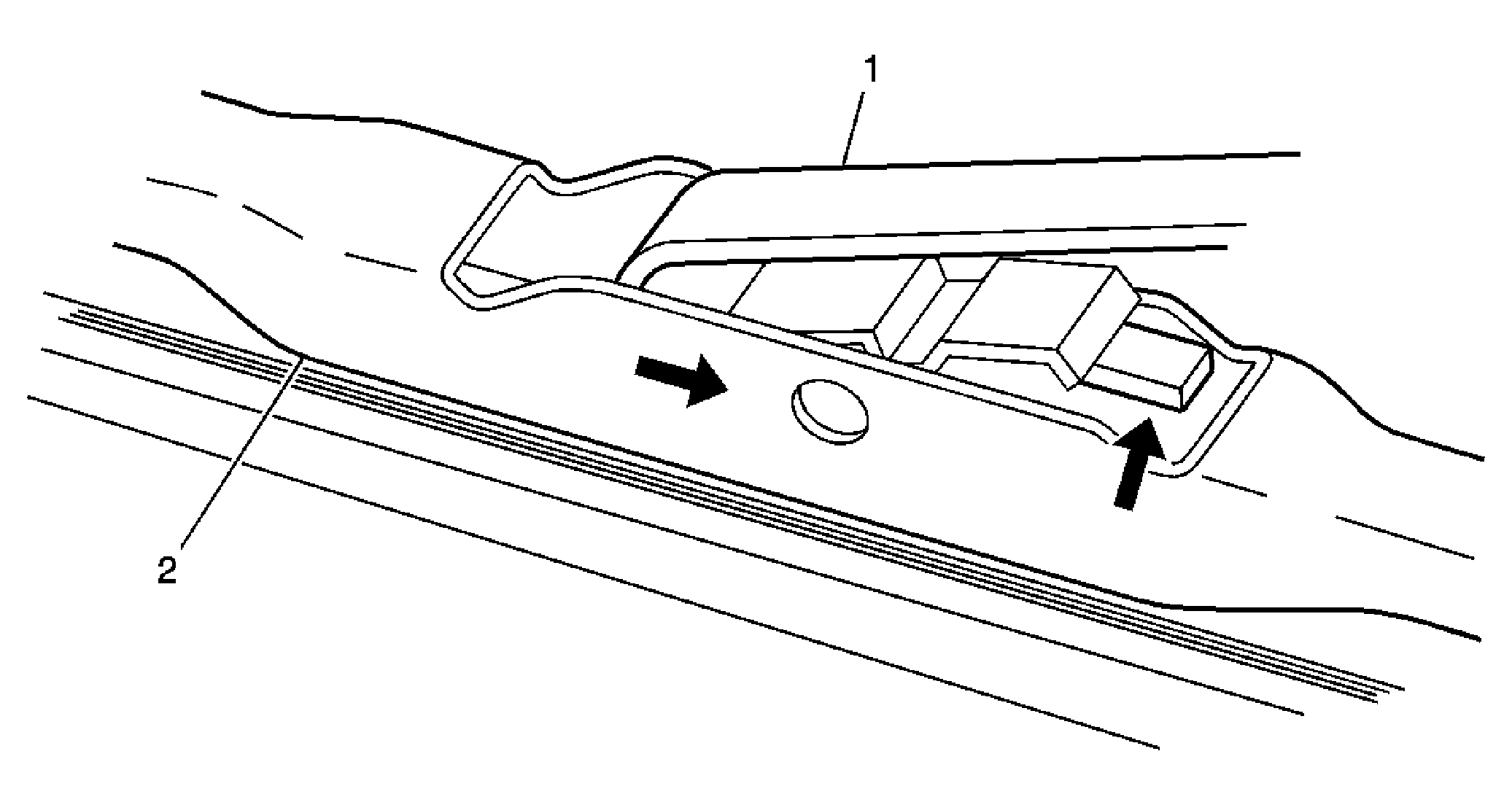

Fig 1: Wiper Arm Blade Replacement
GM1566721Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Lift the wiper arm blade off the windshield.
1 Arm, Windshield Wiper (Qty: 1)
Tip:  Hold the arm and release the locking tab before sliding the blade from the wiper arm.
2 Blade, Windshield Wiper (Qty: 1)
Tip:  Slide the blade rearward out of the wiper arm sheep hook.
