Rear Window Wiper Arm Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

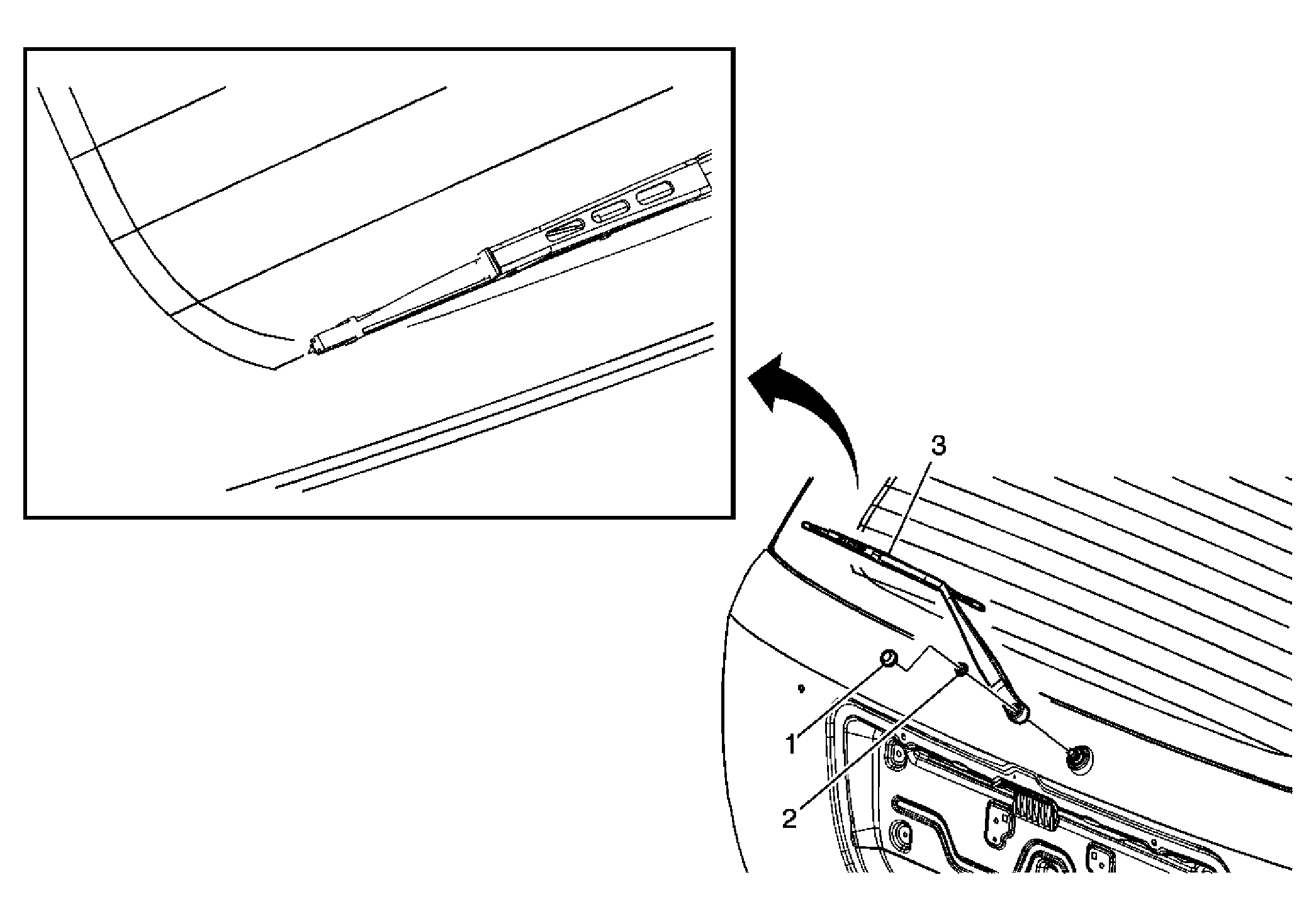

Fig 1: View Of Rear Window Wiper Arm

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wiper Arm Nut Finish Cap
2	Rear Wiper Arm Nut CAUTION: Refer to Fastener Caution . Tighten: 6.5 N.m (58 lb in)
3	Windshield Washer Arm Assembly Tip: Position and hold the wiper blade assembly on the last defroster grid line on the back glass as shown in the illustration. while securing the nut. Operate the windshield wipers and inspect for proper operation.
