Ignition and Start Switch Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

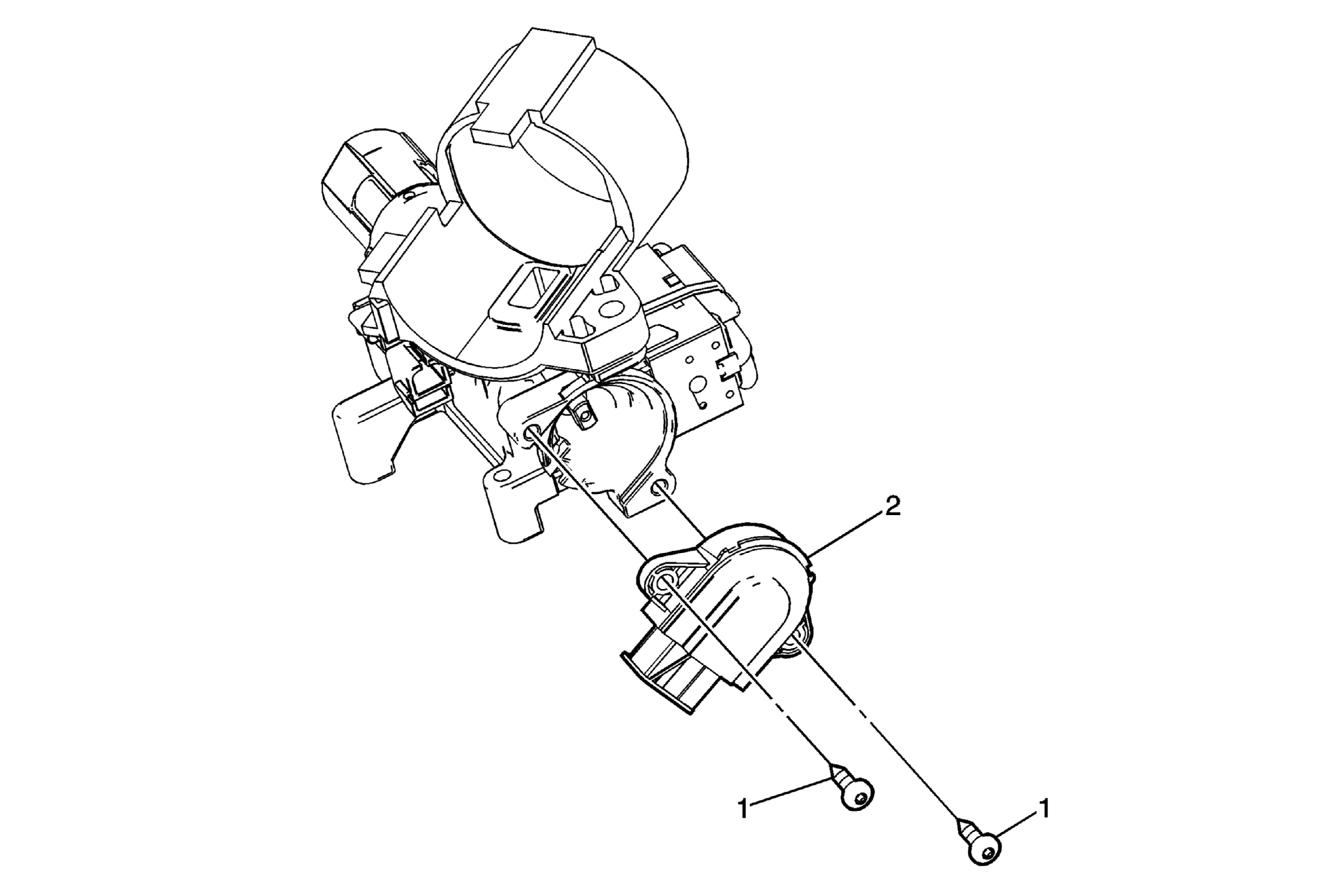

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement . |
|
| 1 | Ignition/Start Switch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Ignition/Start Switch |
