Section 110 (Wiring Systems And Power Management - Electrical Center & Component And Splice Pack Connector End Views)
>>
Electrical Center Identification Views
>>
Fuse Block - Underhood Bottom View
Fuse Block - Underhood Bottom View
WARNING:
This page is about a different car, the 2009 Suzuki XL7, 2009 Pontiac Torrent, and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

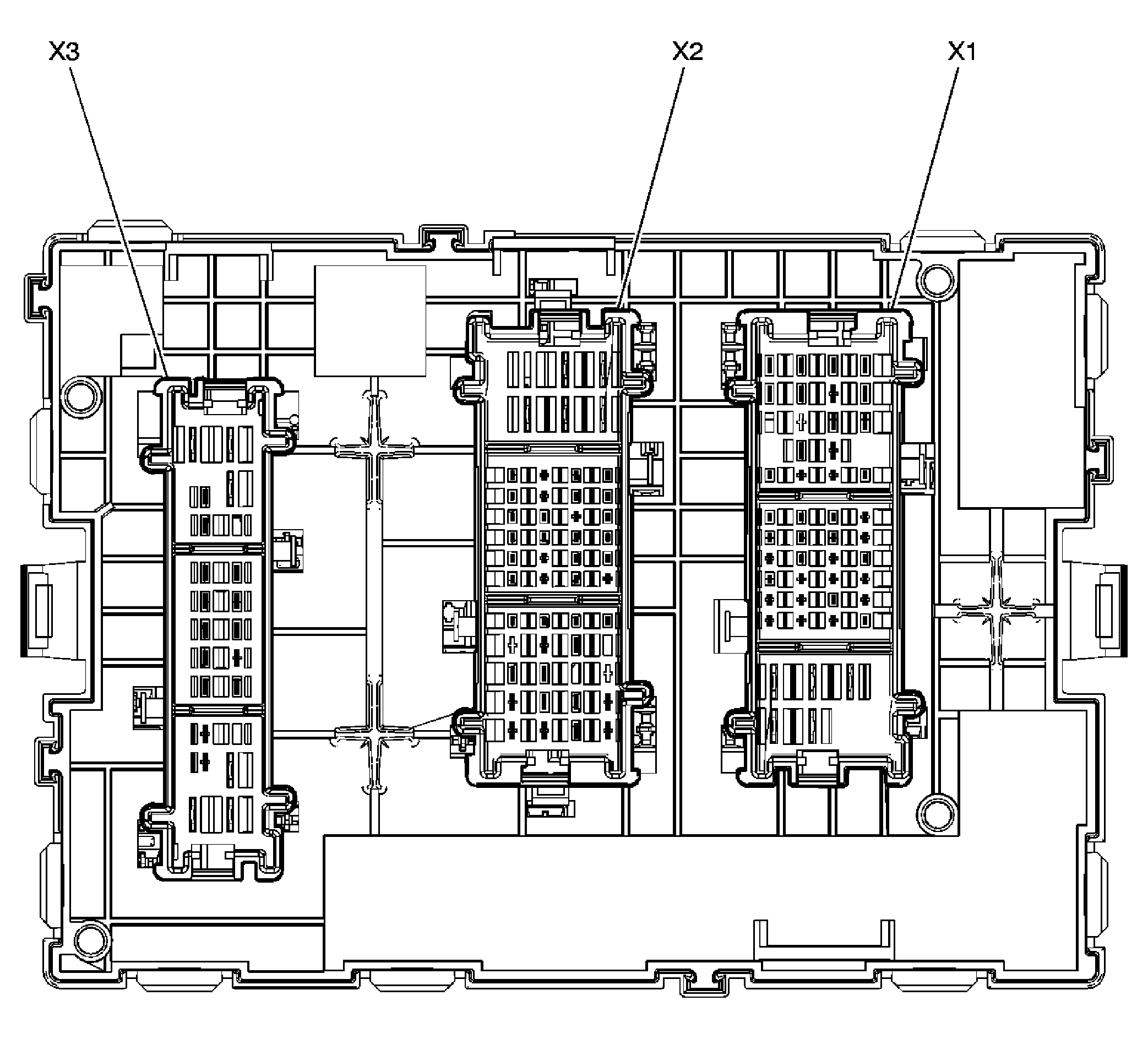

Fig 1: Fuse Block - Underhood Bottom View
Courtesy of GENERAL MOTORS CORP.
