Trailer Connector (V92)

WARNING: This page is about a different car, the 2009 Suzuki XL7, 2009 Pontiac Torrent, and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

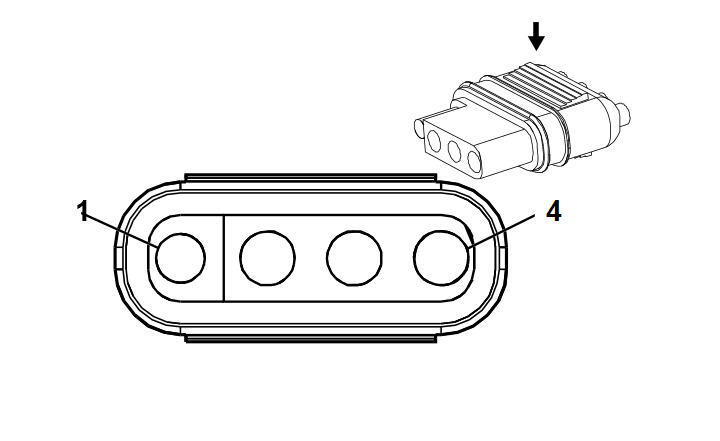

Fig 1: Trailer Connector (V92) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	1.0 WH	850	Ground
2	0.5 BN	2109	Trailer Park Lamps Control
3	0.5 YE	1618	Trailer Left Rear Turn/Stop Lamp Control
4	0.5 D-GN	1619	Trailer Right Rear Turn/Stop Lamp Control

Connector Part Information

OEM: 15A416
Service: Serviced as a harness
Description: 4-Way F Sealed (BK)

Terminal Part Information

Serviced as a pigtail
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
