Inflatable Restraint I/P Module X2

WARNING: This page is about a different car, the 2009 Suzuki XL7, 2009 Pontiac Torrent, and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

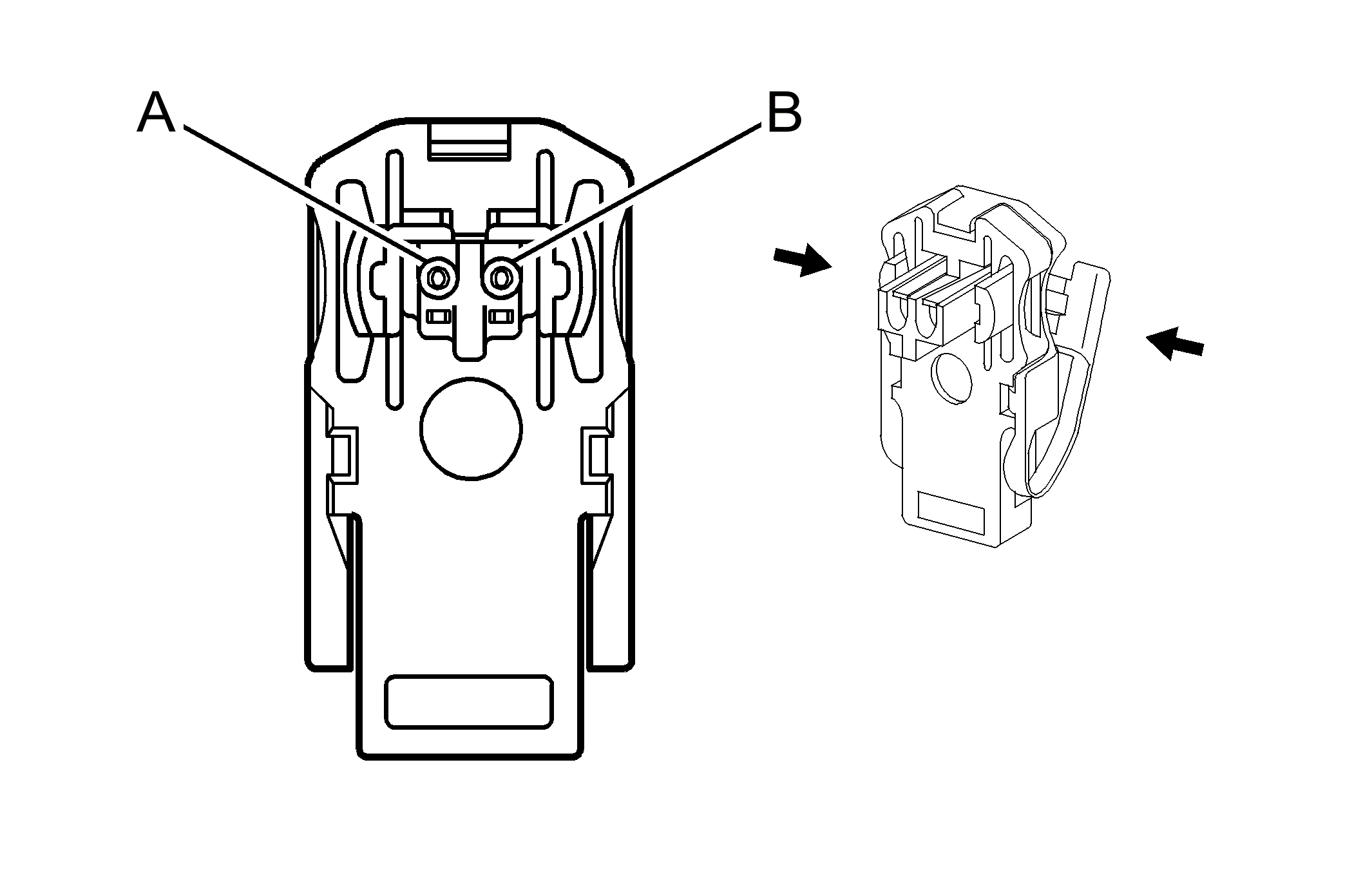

Fig 1: Inflatable Restraint I/P Module X2 Connector End View
GM2152674Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint I/P Module X2

Pin Wire Circuit Function
A 0.35 GY 3027 Instrument Panel Module - Stage 2 - High Control
B 0.35 PU 3026 Instrument Panel Module - Stage 2 - Low Control
Connector Part Information
  • OEM: 252922343
  • Service: See Catalog
  • Description: 2-Way F (YE)

Terminal Part Information
  • Serviced as a pigtail
  • Release Tool/Test Probe: See Terminal Repair Kit
