A/C Compressor Clutch

WARNING: This page is about a different car, the 2009 Suzuki XL7, 2009 Pontiac Torrent, and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

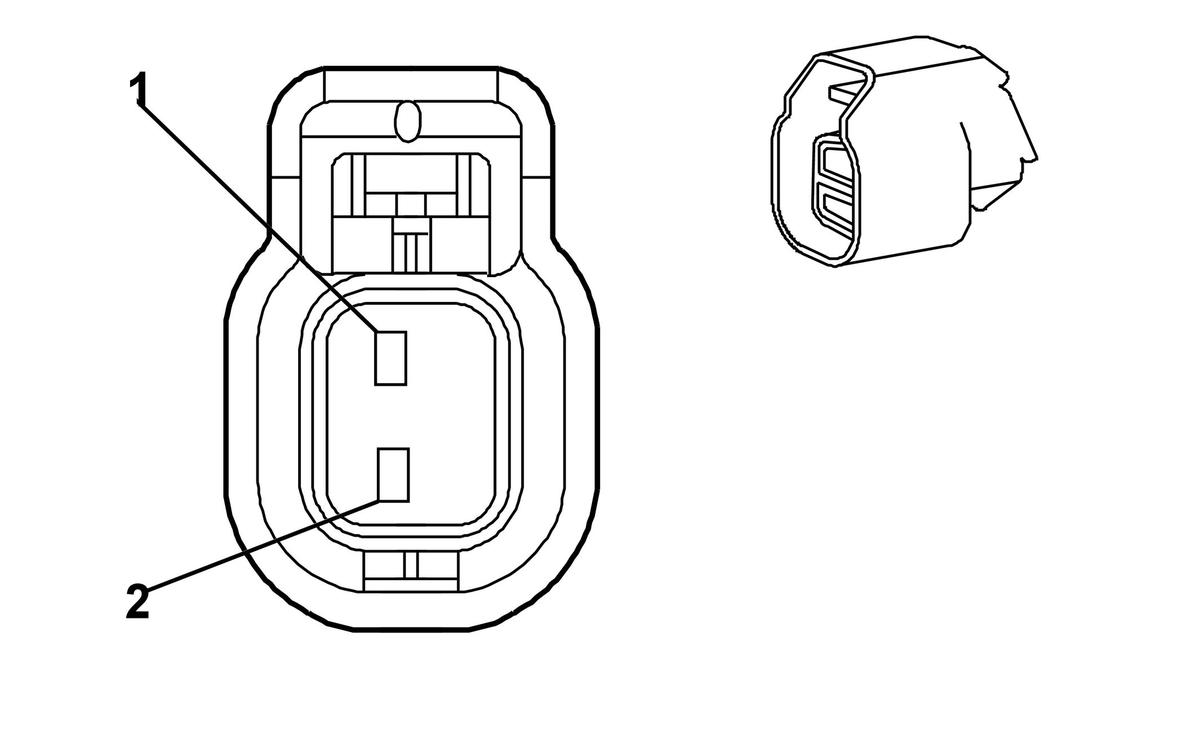

Fig 1: A/C Compressor Clutch Connector End View
GM1413014Courtesy of GENERAL MOTORS CORP.
A/C Compressor Clutch

Pin Wire Circuit Function
1 0.5 D-GN 59 A/C Compressor Clutch Control
2 0.8 BK 450 Ground (LNJ)
0.5 BK 150 Ground (LY7)
Connector Part Information
  • OEM: 7283-5448
  • Service: 89046838
  • Description: 2-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4103-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
