Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Gasket & Exhaust Pipe

Courtesy of GENERAL MOTORS CORP.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the catalytic converter pipe flange to muffler pipe flange nuts.

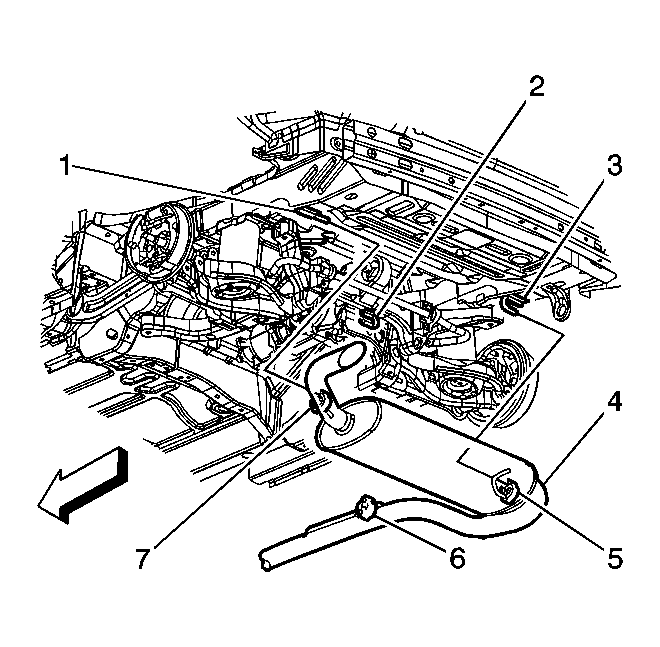

Fig 2: View Of Exhaust System

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, separate the rubber insulators (5, 6, and 7) from the exhaust pipe hangers (1, 2, and 3).

Fig 3: Identifying Muffler Assembly & Catalytic Converter

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, remove the muffler assembly (3) from catalytic converter (1) and the vehicle.
