Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

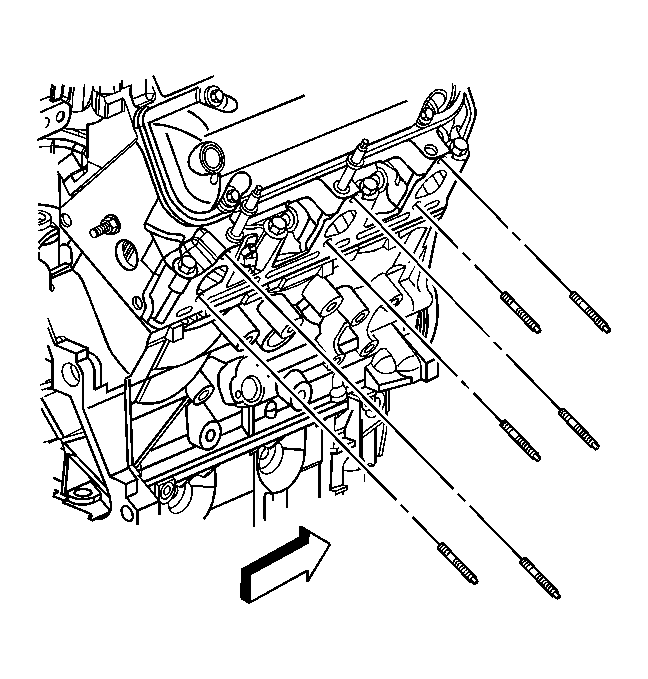

Fig 1: View Of Right Exhaust Manifold Studs

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

If previously removed, install the exhaust manifold studs and tighten to 18 N.m (13 lb ft).
If removed, install the HO2S. Refer to Heated Oxygen Sensor Replacement - Sensor 1 .

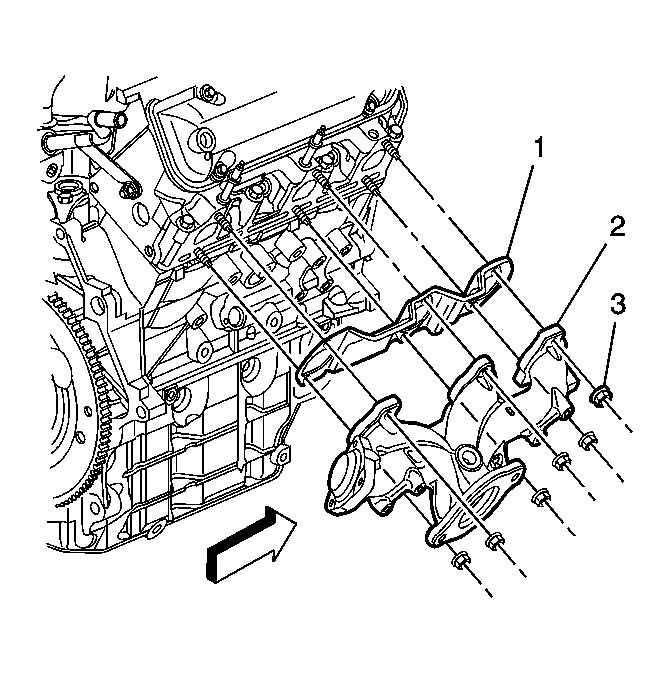

Fig 2: View Of Right Exhaust Manifold, Gasket & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the exhaust manifold gasket (1).
Install the exhaust manifold (2).
Install the exhaust manifold nuts (3) and tighten to 16 N.m (12 lb ft).

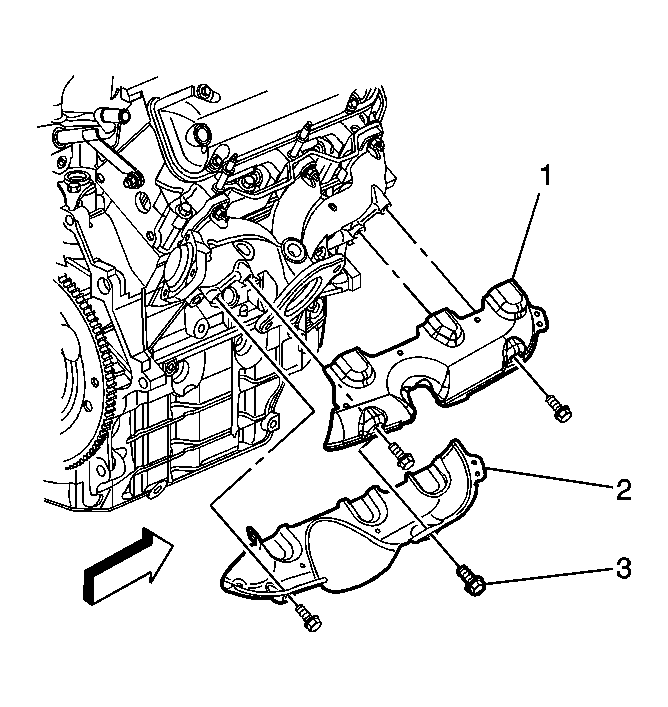

Fig 3: View Of Right Exhaust Manifold Heat Shields & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the exhaust manifold upper heat shield (1).
Install the exhaust manifold lower heat shield (2).
Install the exhaust manifold heat shield bolts (3) and tighten to 10 N.m (89 lb in).

Fig 4: View Of Catalytic Converter & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the catalytic converter (4) to the exhaust manifold and install the nuts (3). Refer to Catalytic Converter Replacement .
Lower the vehicle.
Install the exhaust crossover pipe nuts to the right side exhaust manifold. Refer to Exhaust Crossover Pipe Replacement (LNJ) .
Connect the HO2S electrical connector.
