Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to Exhaust Service Warning .
WARNING: Refer to Protective Goggles and Glove Warning .
    Fig 1: Identifying Engine Wiring Harness Electrical Connector & Heated Oxygen Sensor (HO2S) Electrical Connector
    GM1836230Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel injector sight shield, if necessary. Refer to Fuel Injector Sight Shield Replacement .
  2. Disconnect the engine wiring harness electrical connector (3) from the heated oxygen sensor (HO2S) electrical connector (2).
  3. Remove the HO2S electrical connector retainer from the camshaft cover.

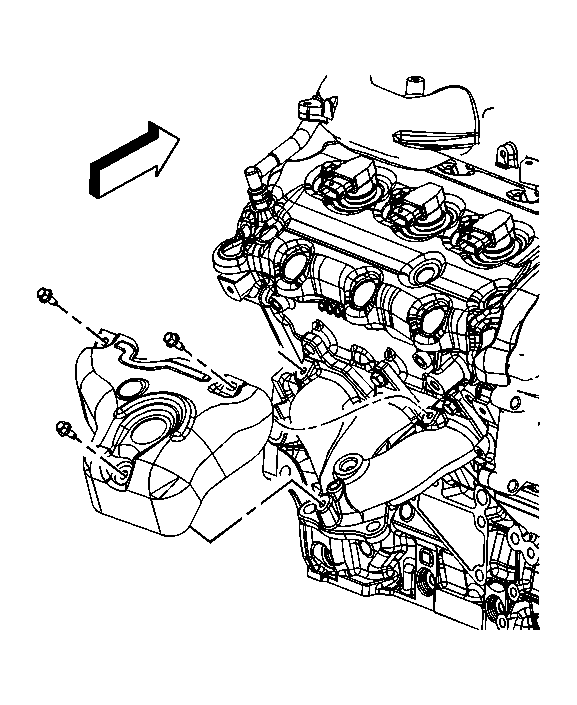

    4. Fig 2: View Of Exhaust Manifold Heat Shield Bolts
    GM1836985Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold heat shield bolts.
  5. Remove the exhaust manifold heat shield, sliding the shield up over the HO2S pigtail.
