Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

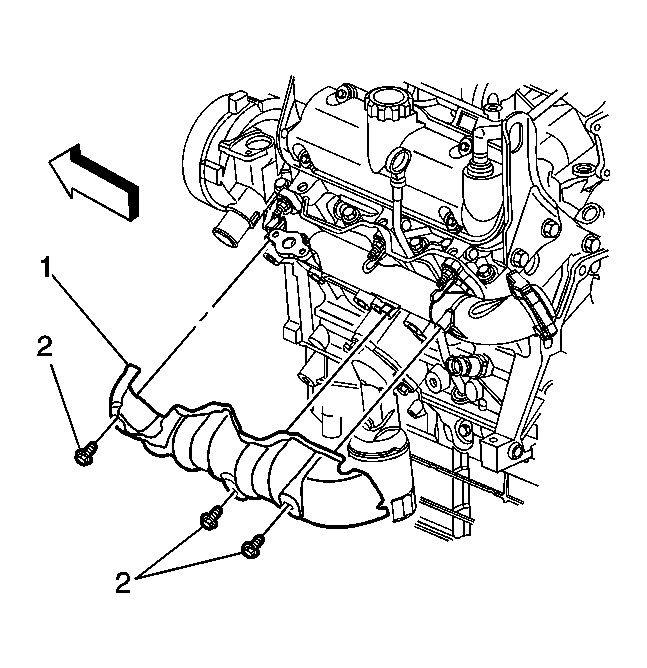

    Fig 1: View Of Left Exhaust Manifold Heat Shield & Bolts
    GM1087638Courtesy of GENERAL MOTORS CORP.
  1. Install the heat shield (1) to the exhaust manifold.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the heat shield bolts (2) to the exhaust manifold and tighten the bolts to 10 N.m (89 lb in).
